AAPG Bulletin
Figure
AAPG Bulletin; Year: 2025; Issue: April DOI: 10.1306/02262523078
Return to Full Text

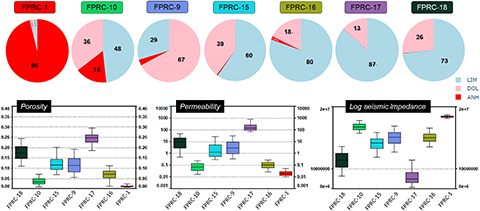

Figure 8. Case study: Middle East Arab C-D. An example of the final petrophysical rock categories (FPRC) with pie charts for mineralogy and cross plots showing ranges in porosity, permeability, and impedance for the remaining, highly predictable, FPRCs. ANH = anhydrite; DOL = dolomite; LIM = limestone.
Figure 8. Case study: Middle East Arab C-D. An example of the final petrophysical rock categories (FPRC) with pie charts for mineralogy and cross plots showing ranges in porosity, permeability, and impedance for the remaining, highly predictable, FPRCs. ANH = anhydrite; DOL = dolomite; LIM = limestone.
