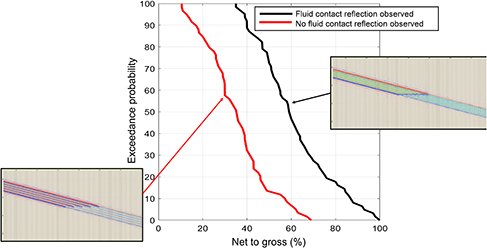

Figure 10. Empirical calibration of fluid contact reflection (FCR) as a function of net-to-gross (NTG) for multicycle reservoirs utilizing direct hydrocarbon indicator calibration points (n = 121). Reservoirs with FCR are generally >50% NTG, whereas common amplitude terminations more often are observed with NTG <50%. Synthetic models shown are constructed for the P50 NTG for each curve.
