Figure 27.

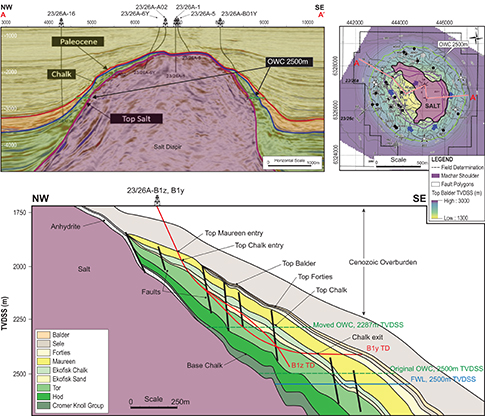

Cross sections and plan view image of the Paleocene trap of the Machar field that has been created on the flanks of an upper Permian (Zechstein Group) evaporite diapir (Sayer et al., 2020). FWL = free-water level; OWC = oil-water contact; TD = total depth; TVDSS = true vertical depth subsea.
Figure 27. Cross sections and plan view image of the Paleocene trap of the Machar field that has been created on the flanks of an upper Permian (Zechstein Group) evaporite diapir (Sayer et al., 2020). FWL = free-water level; OWC = oil-water contact; TD = total depth; TVDSS = true vertical depth subsea.
