The AAPG/Datapages Combined Publications Database
AAPG Bulletin
Figure
AAPG Bulletin; Year: 2022; Issue: March DOI: 10.1306/07132120084
Return to Full Text

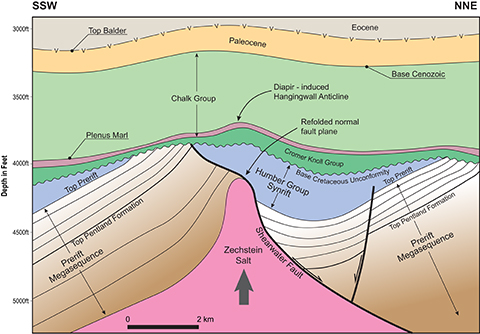

Figure 28.
Cross section across the Shearwater field illustrating how late-stage (Cenozoic) halokinesis has led to refolding of the field-defining normal fault, rotation of the main field with consequent steep dips, and the creation of a hanging-wall anticline devoid of reservoir section to the east.
Figure 28. Cross section across the Shearwater field illustrating how late-stage (Cenozoic) halokinesis has led to refolding of the field-defining normal fault, rotation of the main field with consequent steep dips, and the creation of a hanging-wall anticline devoid of reservoir section to the east.
