Figure 30.

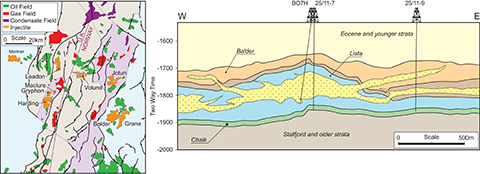

Diagram showing the location of the main suite of fields with injectite reservoirs in the South Viking Graben. Cross section through the fields highlight their complex three-dimensional geometry with the formation of wings that cross normal stratal boundaries (modified from Wild and Briedis, 2010).
