AAPG Bulletin; Year: 2025; Issue: April DOI: 10.1306/03182524012
Return to Full Text

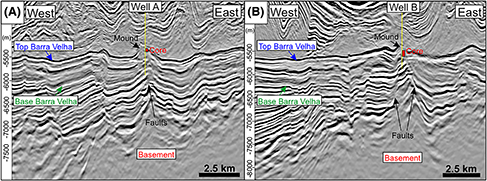

Figure 2. Seismic sections in depth showing the locations of wells A and B. Both wells were drilled in carbonate mounds that are rooted by deeply faulted basement and reservoir blocks. Well trace is in yellow; core positions are shown by red rectangles. (A) East-west seismic section with location of well A. (B) East-west seismic cross section with location of well B. Note faults displacing the top of the Barra Velha Formation.
