INTRODUCTION

Fractured carbonates are a type of subsurface reservoir that currently store a large portion of oil and gas resources worldwide (e.g., Nelson, 2001; Narr et al., 2006; Garland et al., 2012). One of the most prolific discoveries of recent decades is in the Santos Basin, southeastern Brazil. These discoveries are part of the giant Brazilian pre-Salt oil fields that are within Aptian (Lower Cretaceous) lacustrine carbonates of the Barra Velha Formation (e.g., Moreira et al., 2007; Carminatti et al., 2009; Carlotto et al., 2017; Pedrinha et al., 2018; Tanaka et al., 2022).

The Barra Velha Formation host rock is composed mostly of in situ calcite shrub-dominated facies, spherulitic Mg-rich silicate argillites (commonly dissolved or substituted by dolomite or quartz), laminites, and reworked sediments (Terra et al., 2010; De Paula Faria et al., 2017; Herlinger et al., 2017; Arienti et al., 2018; Tosca and Wright, 2018; Lima and De Ros, 2019; Gomes et al., 2020; Hosa et al., 2020; Azerêdo et al., 2021; Carramal et al., 2022; Carvalho et al., 2022; Netto et al., 2022; Fragoso et al., 2023). These deposits formed during evaporitic lake conditions between 123 and 110 Ma (Moreira et al., 2007; Wright and Barnett, 2015; Farias et al., 2019; Wright, 2022), although their exact age is still a matter of debate (Tedeschi et al., 2017; Pietzsch et al., 2020; Sanjines et al., 2022; Lawson et al., 2023). Direct age measurements of calcitic host rock are recent and rare (e.g., Brito et al., 2024), and age is based primarily on ostracod and pollen biostratigraphy (e.g., Moura, 1972; Regali et al., 1974; Arai et al., 1989; Poropat and Colin, 2012; Pietzsch et al., 2018) or extrapolation of K-Ar ages from interbedded mafic rocks (e.g., Mizusaki et al., 1992; Moreira et al., 2007).

The Barra Velha Formation rocks have been described as fractured reservoirs in some locations (Corrêa et al., 2019; Fernández-Ibáñez et al., 2022a, b; Tanaka et al., 2022; Lupinacci et al., 2023; Wennberg et al., 2023). Hydrothermal alteration has been invoked to be associated with fracturing or faulting (Alvarenga et al., 2016; Souza et al., 2018; De Ros, 2021), and analogous examples can also be found in neighboring Macabu Formation in Campos Basin (Vieira de Luca et al., 2017; Tritlla et al., 2018, Lima and De Ros, 2019; Lima et al., 2020). Secondary porosity dominated by fractures and dissolution features impact well productivity (e.g., De Jesus et al., 2016, 2019; Corrêa et al., 2019; Vieira de Luca et al., 2019; Lima, 2020; Silva et al., 2021; Mejia et al., 2022; Mimoun and Fernández-Ibáñez, 2023). Host rock and fractures are commonly associated with several stages of silicification (e.g., Teboul et al., 2019; Sartorato et al., 2020; Basso et al., 2023). However, both the characterization of the diagenetic processes and their association with brittle structures remain poorly understood.

The analysis of diagenetic products, such as cements, in fractures can provide valuable information about how fracture networks were formed (i.e., structural diagenesis) (Laubach et al., 2010, 2019; Beaudoin et al., 2022). Petrographic studies, fluid inclusion microthermometry, and isotope geochemistry combined with modern techniques such as laser ablation-inductively coupled plasma-mass spectrometry (LA-ICP-MS) and U-Pb geochronology of carbonate minerals (e.g., Roberts et al., 2020; Roberts and Holdsworth, 2022) provide means to characterize the environmental conditions and to date the age of fracture and fault formation (e.g., Hoareau et al., 2021; Corrêa et al., 2022; Muñoz-López et al., 2022; Aubert et al., 2023). Structural diagenetic analysis can be carried out on well rock cores or sidewall core samples, with the benefit of improving knowledge about the subsurface fracture network to constrain inputs to discrete fracture network models (e.g., Corrêa et al., 2019; Tanaka et al., 2022).

Published studies about the Barra Velha Formation suggest that fault damage zones (Chester and Logan, 1986; Caine et al., 1996) play an important role in fracture development and that some fractures are enlarged by dissolution leading to vuggy porosity (i.e., large open cavities in rock volume), although complete or partial porosity obliteration by cement also is common (e.g., Corrêa et al., 2019; Fernández-Ibáñez et al., 2022a, b; Wennberg et al., 2023). Available fracture studies of the area focus only on seismic or macroscopic description of the structures; therefore, fracture microscopic textures, their geochemical characteristics, and age are poorly understood. This lack of information commonly impedes subsurface interpreters in building accurate models. Such models should be constrained by a correct understanding of the brittle deformation and diagenetic processes in the pre-Salt oil fields.

Here, we describe textures of the host rock and brittle structures and interpret the geochemical environment and timing of several diagenetic products. To achieve this objective, we used structural core description, petrography, fluid inclusions analysis (microthermometry, bulk crush-leach, noble gas analysis), carbon and oxygen stable isotope analysis, and U-Pb geochronology of carbonates in cores from two wells drilled in the Barra Velha Formation. We reconstruct the timeline of diagenetic events linking brittle deformation and hydrothermal alteration that affected the Barra Velha Formation, documenting the operation of hydrothermal processes that ultimately impact reservoir quality.

GEOLOGIC CONTEXT

Santos Basin Geology

The Santos Basin is located at the southeastern Brazilian margin in the Atlantic Ocean (Figure 1). This margin was initially rifted apart from the Gondwana continent during the Berriasian (Campos Neto et al., 2007; França et al., 2007; Gontijo et al., 2007; Moreira et al., 2007; Rangel et al., 2007; Rodovalho et al., 2007; Silva et al., 2007; Winter et al., 2007; Chaboureau et al., 2013), with its African counterpart at the Angolan Cabinda, Kwanza, and Namibe Basins. The original Gondwanan basement is composed of high-grade metamorphic and magmatic rocks that were formed in episodes of accretion and collision during the Brazilian-Pan-African Orogeny in the Neoproterozoic (Heilbron et al., 2008). These rocks constitute the basement under the Santos Basin and may have conditioned rifting tectonics due to previously existing structures, as shown in the nearby Campos Basin (north of Santos Basin) (Fetter, 2009; Strugale et al., 2021). A later change in the direction of rift opening from northwest to southeast to east to west may have caused oblique and transcurrent reactivations of older faults in the Santos and Campos Basins (e.g., Dehler et al., 2016; Savastano et al., 2017). The Santos Basin is a rift basin with oblique opening, mostly structured by extensional tectonics within a magma-poor passive margin (Zalán et al., 2011; Rigoti, 2015). Transfer zones are identified in some parts of the basin as causing local lateral movements that accommodate deformation (Dehler et al., 2016; Magnavita, 2021).

Figure 1. Santos Basin location and stratigraphic chart. (A) Map of Brazil with location of the Santos Basin at the southeastern coast of Brazil, inside the white square. Internal Brazilian state borderlines are in black. (B) Location of the studied oil field (red square) within the Santos Basin outer high (thick solid black line). The basin is limited by the Cabo Frio high on the northeast and the Florianópolis high on the southwest (dashed lines). (C) Stratigraphic chart of Santos Basin showing the position of the Barra Velha Formation, the main reservoir of the Brazilian pre-Salt fields. The Ariri Formation is formed by evaporites and is a regional seal for the oil fields within the Barra Velha Formation. Main magmatic events, tectonic phases, and unconformities are shown on the right side (modified from Moreira et al. [2007], Buckley et al. [2015], and Wright [2022]). GTS = geological time scale.

In the Santos Basin, the rifting history started with the propagation of the rift toward the southern Brazilian margin and the deposition of mafic volcanic rocks, the Camboriú Formation, mainly during the Hauterivian (Early Cretaceous) (Moreira et al., 2007). The sedimentary infill began in the Barremian (Early Cretaceous) with the deposition of a sequence of siliciclastic rocks, the Piçarras Formation, mostly composed of alluvial-lacustrine shales and stevensitic (i.e., variety of the clay mineral smectite) sandstones (e.g., Leite et al., 2020). By the end of the Barremian and the beginning of the Aptian (Jiquiá local age) (e.g., Moura, 1972; Pietzsch et al., 2018), new bioclastic carbonate rocks commonly composed of pelecypod shells formed most of the Itapema Formation, an important reservoir that also contains some of the main shaly source rocks deposited in the deepest parts of the lake. Most of the Itapema Formation reservoirs comprise bioclastic rudstones and grainstones, thought to have formed in lake islands, with constant freshwater input, enabling a suitable environment to foster life diversity (e.g., Sabato Ceraldi and Green, 2017; Mizuno et al., 2018; Muniz and Bosence, 2018; Pietzsch et al., 2018, 2020). This interpretation is supported by progradational features in seismic lines that suggest a relevant lacustrine bathymetric relief at this stage (e.g., Carlotto et al., 2017; Barnett et al., 2021). The top of the Jiquiá Stage is capped by the sub-Alagoas unconformity that separates the bioclastic Itapema Formation from the overlying Barra Velha Formation.

The Barra Velha Formation was deposited during the Aptian (Alagoas local age), where environmental conditions were very arid and the lake became underfilled (e.g., Moreira et al., 2007; Wright and Barnett, 2015; Tosca and Wright, 2018), forming unique chemical conditions that allowed the deposition of large amounts of lacustrine carbonate rocks that form the main reservoir in the pre-Salt of the Santos Basin. The most common reservoir facies are in situ calcite shrub-dominated facies (shrubstone [Gomes et al., 2020]) and Mg-rich silicate argillites with spherulites (spherulitestone [Gomes et al., 2020]) that may show variable amounts of diagenetic alterations that can create secondary porosity. These shrubby and spherulitic calcite textures are thought to have formed in special conditions when the lake water was alkaline and supersaturated with respect to calcite, with the microbial contribution being a rare component, mostly linked to laminite facies (e.g., Terra et al., 2010; Souza et al., 2018; Lima and De Ros, 2019; Pietzsch et al., 2022). Laminites and grainstones can form cyclical deposits with silica beds (Wright and Barnett, 2015), due to variation in freshwater input and pH level. The lower Barra Velha section is capped by the intra-Alagoas unconformity that separates the less-structured upper section from the more-structured lower section, which is the same organization seen in most neighboring basins along the Brazilian southeastern coast (e.g., Strugale and Cartwright, 2022).

Fractures are commonly observed both in cores and image logs, frequently associated with vuggy porosity (Corrêa et al., 2019; Wennberg et al., 2023), and usually related to silicified zones (Lupinacci et al., 2023; Mendes et al., 2024). Fault zones show high fracture density and are important conduits for fluid flow (Fernández-Ibáñez et al., 2022b; Tanaka et al., 2022).

The Barra Velha Formation is overlain by the evaporites of the Ariri Formation, deposited with the emplacement of extremely arid environment and marine incursions (Moreira et al., 2007). The Ariri Formation acts as a regional seal for the pre-Salt accumulations. Later, the Santos Basin evolved into a passive-margin marine basin, as represented by sedimentary successions of the Camburi, Frade, and Itamambuca Groups (Moreira et al., 2007). Lastly, apart from the Camboriú Formation, at least four magmatic events that occurred in the basin during the Barremian, Aptian, Campanian, and Eocene have been recorded (Moreira et al., 2007).

The evolution of the Santos Basin is linked to other basins along the Brazilian and the Angolan coasts, which also have pre-Salt reservoirs like the Barra Velha Formation. To the north, the Santos Basin is separated from the Campos Basin by the Cabo Frio high. To the south, it is separated from the Pelotas Basin by the Florianópolis high, also thought to have impeded communication with seawater during most of the Early Cretaceous. Toward Africa, the Kwanza and Namibe Basins are the original continuation, now separated by the Atlantic Ocean (e.g., Moulin et al., 2010; Sabato Ceraldi and Green, 2017).

Well Data

The samples studied here originate from drill cores from two producing vertical wells in one oil field in the Barra Velha Formation. The wells were extensively cored, allowing us to describe the structures and to prepare thin and thick sections, rock chips, and rock powders for geochemical analysis.

Our analysis is focused within the limits of the Barra Velha Formation. Seismic lines show that both wells are positioned in mounded carbonate features (several hundred meters high), with chaotic seismic facies (Figure 2). It is also possible to see deep faults crossing the Barra Velha Formation, some of which reach the basement and the top of the Barra Velha Formation, where evaporites are deposited. The tops of these mounds are capped by an anhydrate layer. Both wells showed severe drilling mud loss during the drilling operation, indicating the presence of open conduits. Formation tests show permeability levels up to several darcies, which is much higher than matrix permeability, indicating an extramatrix component in the permeability (e.g., Fernández-Ibáñez et al., 2022a).

Figure 2. Seismic sections in depth showing the locations of wells A and B. Both wells were drilled in carbonate mounds that are rooted by deeply faulted basement and reservoir blocks. Well trace is in yellow; core positions are shown by red rectangles. (A) East-west seismic section with location of well A. (B) East-west seismic cross section with location of well B. Note faults displacing the top of the Barra Velha Formation.

Well A has a total of 10.6 m of core length. Although we studied the entire cored section, most of our work focused on one representative part of ∼4 m, where we could clearly observe intensive brittle deformation with vuggy fractures (e.g., Nelson, 2001) and cavities lined by euhedral quartz (i.e., quartz geodes). In addition to this core, we obtained a spherulitestone sample from a drilled plug, located deeper and ∼250 m below the core position in well A, in the lower Barra Velha Formation, to be used specifically for petrography and geochronology. Well B has a total of 99.39 m of core length. Our studies focused on one interval of 15.8 m, where we observed intensive brecciation and faults.

METHODS

Structural Core Description

Core orientation was not available, and thus we measured dip angle variation, fracture width (i.e., total opening displacement) and apertures (i.e., preserved open part of the fracture) (Ortega et al., 2006; Bisdom et al., 2016; Wennberg et al., 2016). Since the wells are nearly vertical, the dip angles can be obtained directly from the core without angular corrections (e.g., Terzaghi correction). For macroscopic and microscopic descriptions of host rocks, we used the classification from Gomes et al. (2020) that is well suited for the rocks of the Barra Velha Formation.

The brittle structures in core can be divided into faults and opening-mode fractures having various degrees of mineral fill. We designated structures in core using the following nomenclature.

Fault: macroscopic shear planes with striation and associated breccia and cataclasis. Used for structures of unknown displacement, but likely greater than centimetric (Hancock, 1985).

Small displacement fault: fault showing centimetric or millimetric shear displacement (i.e., wall parallel movement) and cataclastic texture.

Collapse breccia: rock composed of clasts of host rock or of other breccias, commonly cemented, sometimes show geopetal infill and evidence of roof collapse (Shukla and Sharma, 2018).

Fault breccia: rock composed of clasts of host rock or of other breccias, commonly cemented and with angular fragments, found within fault zones (Shukla and Sharma, 2018).

Opening-mode fracture: general term for fractures showing wall perpendicular displacement, which can be filled with cement or not.

Vein: fully or partially cemented opening-mode fracture (Hancock, 1985).

Vuggy fracture: opening-mode fracture with dissolution features and aperture commonly larger than 1 cm (e.g., Nelson, 2001).

Wide vein: cemented opening-mode fractures with widths larger than 10 cm, with irregular walls, crack-seal texture, cementation by quartz and calcite, internal brecciation, geopetal infill, and vuggy pores.

Geode: vuggy pore (larger than 1 cm) or cavity coated by euhedral crystals.

Petrography

Some types of fractures were too small to be macroscopically visible in the cores and needed further investigation through microscopy. In total, we prepared 9 thin sections from the well A drill core and 23 thin sections from the well B drill core. We stained the thin sections using Alizarin Red S where we needed to differentiate calcite from dolomite (Friedman, 1959). Thin sections were analyzed using transmitted light in a Zeiss Imager A2m microscope, and several thin sections were imaged into a photomosaic using a Zeiss M2m microscope. We observed cement fabrics and crosscutting relationships to determine cement precipitation order.

Some thin sections were carbon coated and imaged using backscattered electron microscopy using a Zeiss Sigma high vacuum field emission scanning electron microscope with 5 to 7 kV. We used an energy-dispersive x-ray spectroscopy detector to obtain x-ray spectra with 15 kV from locations where mineral identification was dubious using only transmitted light petrography. We also acquired optical cathodoluminescence images from some samples to assess the degree of recrystallization. For this, we used a CITL MK5-2 cathodoluminescence device coupled into a Zeiss Scope.A1 microscope under a beam current of 200 µA and 10 kV.

Fluid Inclusion Microthermometry

Fluid inclusion petrography was conducted using a Zeiss microscope equipped with an ultraviolet (UV) epifluorescence light (UV metal halide light source and 4′,6-diamidino-2-phenylindole filter) and 50× and 100× objectives combined with auxiliary lenses of ×1.6 and ×2.5. Fluid inclusions were classified based on their textural and spatial distribution into primary and secondary fluid inclusion assemblages (FIAs), following the genetic classifications of Roedder (1984), Goldstein and Reynolds (1994), Goldstein (2001), and Fall and Bodnar (2018). Microthermometry followed the procedures described in Goldstein and Reynolds (1994). For microthermometry, we used both a Fluid Inc.–adapted US Geological Survey–type gas-flow heating/freezing stage on an Olympus B ×41 microscope, and a Linkam THMS600 heating/freezing stage mounted on the Zeiss microscope. Both stages were calibrated using synthetic fluid inclusions (H₂O-CO₂ and pure H₂O with critical density), and data were obtained with precisions of ±0.1°C for both stages.

Bulk Crush-Leach

Bulk crush-leach analysis of fluid inclusions was carried out at the University of Leeds following the methodology described in detail by Banks et al. (2000) and Lüders et al. (2002). Samples of barite and quartz were crushed to 1- to 2-mm grain size, cleaned by boiling several times in 18.2 ΜΩ water, and dried before the analysis. Approximately 0.5–1 g purified sample material was manually crushed with an agate mortar and pestle. The resulting mineral powder was leached with 18.2 ΜΩ water and filtered through a 0.2-μm nylon filter before the analysis. Ion chromatography was used for the analysis of the anions Cl⁻ and Br⁻ in the leachate solutions. The cations Na⁺, K⁺, and Li⁺ were measured using flame emission spectroscopy. The detection limits for the elements analyzed were as follows: Na = 20 ppb, K = 25 ppb, Li = 1 ppb, Cl =20 ppb, and Br = 1 ppb. The average precision, as determined from a series of replicate analyses, is better than 10% relative standard deviation.

Noble Gas Analysis

Noble gas analysis was performed using samples of 0.18 to 1.02 g of hand-picked quartz and barite mineral separates. The samples were loaded into an ultra-high vacuum spindle crusher, which was pumped at room temperature for at least 24 hr to remove the atmospheric gases adsorbed on grain surfaces. For gas extraction, the samples were crushed under vacuum, and the gases released were admitted to the preparation line. Water was frozen in a dry ice–cooled trap, and other chemically active species were removed in Ti sponge and ZrAl getters. The noble gases were then separated from one another in a cryogenic adsorber, and noble gas concentrations and isotopic compositions were determined in a VG5400 noble gas mass spectrometer according to the procedures described by Niedermann et al. (1997) and Lüders and Niedermann (2010).

C and O Stable Isotope Analysis

We obtained C and O stable isotopic compositions from calcites at The University of Texas at Austin Bureau of Economic Geology stable isotope laboratory using rock powders collected with a microdrill from several locations in the cores. The powders were stored individually in clean glass vials for analysis. We cleaned the drill bit using water between each sample acquisition to avoid contamination. Aliquots of ∼0.3 mg were analyzed for δ¹³C and δ¹⁸O using a Thermo Fisher Scientific GasBench II coupled to a Thermo Fisher Scientific MAT 253 isotope ratio mass spectrometer (Révész and Landwehr, 2002; Spötl and Vennemann, 2003). We reacted the samples in helium-flushed vials with H₃PO₄ at 50°C for 8 hr. Data were calibrated (values are reported in per mille Vienna Peedee belemnite [VPDB]) using calcite standards NBS-18 (δ¹⁸O_VPDB = −23.0‰, δ¹³C_VPDB = −5.0‰) and NBS-19 (δ¹⁸O_VPDB = −2.3‰, δ¹³C_VPDB = 1.95‰). Replicates of an internal carbonate standard were analyzed throughout the analytical session to account for analytical drift and precision, reaching an analytical precision of ±0.06‰ for δ¹³C_VPDB and ±0.10‰ for δ¹⁸O_VPDB routinely.

LA-ICP-MS U-Pb Geochronology

We analyzed calcite U-Pb geochronology at the UTChron laboratory at The University of Texas at Austin. The LA-ICP-MS system consists of a PhotonMachines Analyte G2 ArF excimer 193-nm laser, equipped with a two-volume HelEx sample cell, coupled to a Thermo Element 2 double-focusing magnetic sector ICP-MS. The helium carrier gas is mixed with argon before entering the ICP-MS. The analyses were conducted on polished thick sections (>120 µm thick) and thin sections (30 µm thick) in static spot mode. For the thick sections, we used a laser beam diameter of 110 µm, operated with an energy density of 3.82 J/cm² measured with an energy meter and a pulse rate of 10 Hz. For the thin sections, we used a laser beam diameter of 110 µm, operated with an energy density of 2.86 J/cm² and a pulse rate of 8 Hz. The analysis followed the routine of 4 cleaning shots, 27 s of baseline data collection, 20 s of ablation, and 27 s of washout. The number of ablation shots varied depending on the section thickness and can vary between 150 and 300 shots.

We corrected elemental and isotopic fractionations by interspersed analysis of primary calcite reference material WC-1 (²⁰⁶Pb/²³⁸U age 254.6 ± 6.4 Ma; Roberts et al., 2017). Analyses were made in repeating blocks of 2 standards, followed by 10 unknowns, with NIST614 measured periodically to monitor Pb isotopic fractionation. Age calculation was performed using Iolite version 3.7 (Paton et al., 2011) and VizualAge UcomPbine (Chew et al., 2014). A ²⁰⁷Pb common Pb correction was applied to correct for common Pb in the primary reference material (WC-1 ²⁰⁷Pb/²⁰⁶Pb = 0.85).

In each region of interest within the studied sections, at least 17 spots were ablated. Time-integrated data were exported as entire 20-s ablation windows if isotopically homogenous or broken up into 2 to 4 shorter ablation windows if exhibiting isotopic variation. The U-Pb data were plotted in Tera-Wasserburg diagrams and lower intercept ages calculated using IsoplotR (Vermeesch, 2018). We show errors for isotopic ratios and ages as 2σ absolute errors.

Chalcedony cement was ablated at several locations in one sample from well A to investigate uranium content, which had previously been identified as anomalously high in this interval by wire-line logs (Melani, 2019).

RESULTS

Brittle Deformation

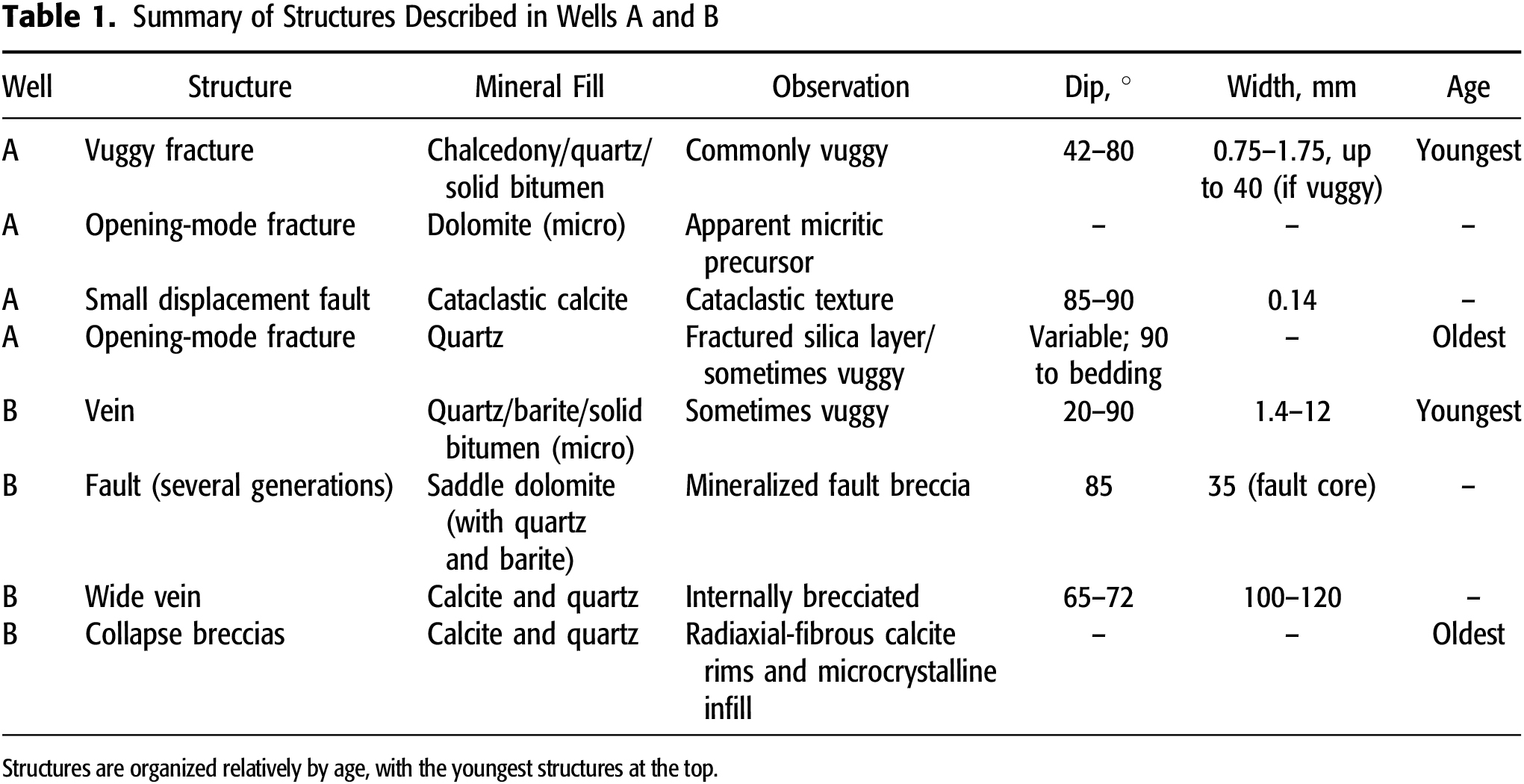

We list below the visible structures in the core and organize them according to their relative age based on crosscutting and abutting relationships (Table 1). We show an individual scheme for the sequence of brittle structures found in each well.

Well A

Core Description

Well A shows a predominance of shrubstones and grainstones (∼80%) with minor intervals of spherulitestones and laminites as host rock (Gomes et al., 2020). Silica beds intercalated with sediments are commonly fractured locally, with stratabound fractures (Odling et al., 1999) spanning the layer thickness (∼2 cm) (Figure 3F). Fractures cut the host rock with dip angles between 42° and 90°, with an average dip angle of 78°; most are pure opening-mode fractures or show a small shear displacement. Some intervals of the core (∼20 cm long) are incohesive and may represent intervals of intense fracturing. The predominant structural features are quartz-filled opening-mode fractures with irregular, corroded walls. These fractures are interpreted to represent dissolution followed by quartz precipitation. Pitting causes opposite fracture walls to not match, so that the original fracture width cannot be observed any longer. Carbonate dissolution on fracture walls differentially enlarged opening displacement, hindering observation of the original fracture wall position.

Figure 3. Fracture and dissolution features observed in the core from well A. (A) Vuggy fracture (Vf) cutting the shrubstone host rock with alteration halo. Most primary pores of the host rock are filled with grayish quartz. Host rock is commonly observed with vuggy aspect. (B) The Vf crossing the core. Vugs are coated with up to 1-mm-sized euhedral quartz crystals. (C) The vuggy fractures filled with yellowish quartz (Yqtz) and shrubstone host rock cemented with grayish quartz (Gqtz). Sparse vugs or geodes filled by quartz crystals are observed in the host rock. (D) The vuggy fractures with centimeter-sized aperture coated by euhedral quartz. (E) Narrow small displacement fault (Sf) swarm, with cataclastic fill. (F) Silica layer bearing bed-perpendicular opening-mode fractures. (G) Silicified spherulitestone host rock and open Vf with euhedral quartz. This fracture is associated with centimeter-sized quartz geodes (Qtzg).

In some cases, the pitting and thus dissolution along the fracture planes is so pervasive that the site of former fractures forms geodes with continuous vuggy cavities (i.e., vuggy fractures) that are commonly partially filled with euhedral quartz crystals (Figure 3A–D, G). Locally, we observed an alteration halo changing the color of the host rock around the fractures (Figure 3A). Narrow fractures are commonly completely cemented with quartz, whereas wider fractures of at least 1- to 2-cm width are mostly open. Pervasively cemented fractures linked to geodes that still preserve porosity often can be observed (Figure 3C). Quartz fills the fracture width completely, except where aperture is preserved and so enlarged (approximately >1 cm) that vuggy pores are present. In this case, the vug is contained along the fracture plane (Figure 3D). Pore size in vugs is variable and can reach up to 3 cm width. Some fractures show yellowish quartz cement on the fracture walls and a second generation of grayish quartz cement in the fracture center. Host rock pores are commonly filled by the grayish quartz cement or show a vuggy texture (Figure 3A). We also observed swarms of older narrow (<1 mm) subvertical small displacement faults with cataclastic texture that are cut by younger vuggy fractures filled with quartz (Figure 3E).

Petrography

In some sections of well A, there is microscopic evidence of shear deformation, marked by small displacement faults showing fault breccias with cataclastic matrix (Figure 4E). These fault breccias have clasts of the host rock, and the presence of cataclasis is evidenced by different sizes of grains formed by chipping. They occur relatively early, because they are crosscut by later fractures filled by quartz cementation that is widespread in the samples from well A. Also early are opening-mode fractures filled with a micritic infill, intensely substituted by rhombohedral dolomite and that are crosscut by quartz veins (Figure 4F). The fractures with micritic infill differ from the small displacement faults because they are dolomitized and do not contain host rock clasts or breccias.

Figure 4. Photomicrographs of well A thin sections. (A) Quartz vein (QV) filled by chalcedony rims (CR) and megaquartz (MQ) in the center cutting a shrubstone host rock. Note irregular walls and the association with rounded clasts of host rock (HRC). Open porosity is secondary and associated with quartz cement and solid bitumen (SB). Younger QVs crosscut the older structures. Plane-parallel transmitted light. (B) Shrubstone with QV filled by CR, MQ, and HRC. Cross-polarized transmitted light. (C) Vuggy fracture filled with MQ and SB. Note irregular walls and truncated growth lines on shrubs, evidence of dissolution of fracture walls. Host-rock relicts (HRR) are seen in the form of small circular inclusions and often follow the fracture wall. Plane-parallel transmitted light. (D) Backscattered electron microscopy/energy-dispersive spectroscopy image of banded CR with a calcitic host rock clast (HRC) and banding around smaller inclusions. (E) Small displacement fault with cataclastic texture (Caf) is crosscut by a vein filled by CR and MQ. Plane-parallel transmitted light. (F) A QV crosscutting a shrubstone host rock. The vein crosscuts an older cavity filled with a dolomitized micritic infill (DMI). Primary porosity (PP) is preserved between shrubs and secondary porosity by shrub dissolution (DS) is common. The detail shows dolomite (Dol) and quartz (Qtz) filling the fracture. Plane-parallel transmitted light.

The vuggy fractures observed in well A also exist at the microscale and contain two phases of quartz cement. The first phase filling the quartz veins is a banded chalcedony, which corresponds to the yellowish quartz from the macroscopic observations. Chalcedony covers the fracture wall following an irregular contact with host rock (Figure 4A, B). In the center of the quartz veins, megaquartz (i.e., blocky or macrocrystalline quartz) cement fills the remaining fracture pore space. This fill can constitute from 10% to 50% of the fracture volume. In sections of the core where fracture aperture is wider than 1 to 2 mm, quartz cement has euhedral terminations, and porosity is still preserved. However, smaller pore sizes are usually completely cemented by quartz. A black material lacking crystalline habit can be found in some vuggy fractures and is interpreted as solid bitumen (Figure 4C).

Quartz-filled fractures contain fragments of the host rock. Both quartz cement phases overgrow broken pieces of host rock walls within the cemented fracture. The chalcedony cement phase is the first and thus coats broken pieces of host rock in larger proportions, showing a characteristic banding around host rock clast and tiny inclusions (Figure 4D). Locally, fractures that are only filled with megaquartz cut fractures filled with chalcedony, suggesting that megaquartz is a late mineralization phase contemporaneous with a later deformation event. In some cases, where fractures are filled with both quartz cement phases, broken pieces of chalcedony-coated host rock are rebrecciated and cemented in the fracture by megaquartz. A late phase of narrow (1 mm) quartz-filled opening-mode fractures crosscut all of the structures with regular sharp fracture walls.

The cathodoluminescence images from host rock depositional shrubs and spherulites show a consistent orange color through the crystals and small (0.1–0.2 mm), dark luminescence areas that do not seem to be relevant in volume (Figure 5A, B). At one of the samples from well A we detected consistent changes in cathodoluminescence (Figure 5C).

Figure 5. Cathodoluminescence images showing laser ablation spots (LS). (A) Calcite shrub in well A shows consistent bright orange luminescence (BL) with minor nonluminescent spots. Larger dark nonluminescent areas (DL) can be seen on the right side, away from the laser spots. (B) Calcite spherulite with consistent color around the rim and darker colors in the center. The LSs are at the rims of spherulite 1 (right/large) and in the center and at the rims of spherulite 2 (left/small). The Mg-rich clay matrix is seen substituted by quartz with bluish luminescence and orange luminescent dolomite. (C) Calcite shrub with probable recrystallization or alteration showing areas with DL and BL. Some LSs are in the dark areas. A fracture on the right side of the image is filled with dark orange dolomite.

In one of the samples, we imaged two spherulites (Figure 5B, spherulite 1 at right, spherulite 2 at left) that show LA spots on the borders and in the center. The cathodoluminescence color shows a brighter color around the spots, suggesting that the LA may have affected the resulting color obtained from cathodoluminescence around the laser pits.

Sequence of Events

The first event observed is fractured silica layers bearing opening-mode fractures spanning bed thickness (Figure 6A). The following events are small displacement faults, with cataclastic texture usually having a high dip angle (>85°). Subsequently, opening-mode fractures cut the older structures, and show microcrystalline infill that is largely dolomitized (Figure 6B). The youngest observed structures are the vuggy fractures that are evidence of dissolution of fracture walls, followed by an initial chalcedony cementation that usually contain cemented pieces of broken fracture walls (Figure 6C). Megaquartz cementation follows, and some fractures are filled only by megaquartz. Solid bitumen can be found as the latest phase of fracture infill. In cases in which the fracture aperture is large (>1 cm), open pores are preserved within geodes.

Figure 6. Sequence of brittle deformation events in well A based on crosscutting relationships. (A) Fractured silica layers and small displacement faults showing cataclastic texture and clasts of host rock within a dark matrix. (B) Opening-mode fracture filled with microcrystalline infill that is dolomitized. (C) Chalcedony and megaquartz veins showing irregular walls and quartz geodes, with preserved porosity. Fragments of host rock wall are cemented within chalcedony cement. Megaquartz cement can be found filling some fractures without the earlier chalcedony phase. Solid bitumen is commonly the final filling in fractures. Pore is commonly preserved where fracture widths are large.

Well B

Core Description

Well B shows a predominance of spherulitestones and laminites (∼60%) as host rock, with smaller portions of shrubstone and grainstone. In several places, identification of the host rock type is hindered by brecciation, closely spaced fractures, and silicification. Several fractures cut the host rock with dip angles varying between 20° and 90° (Table 1). Wall offsets show that most fractures have pure opening-mode displacement and attitudes at a high angle to bedding. Locally, some of the fractures having a component of dilatational offset may demonstrate millimetric shear displacement (possible sheared opening-mode fractures). Depositional beds are commonly tilted and may assume extreme steep dip values of 70°. In some cases, bed dips are steep, and fractures are at a high angle to bed dip.

The predominant structural features in this core are collapse and fault breccias (Figure 7A, C). These appear in several core intervals and range from microscale to centimeter-sized clasts accounting for ∼30% of the core. Brecciated intervals can comprise up to 2 m of continuous length of the core.

Figure 7. Fracture, fault, and collapse breccia features from well B. (A) Brecciated laminite host rock (BrLam). The collapse breccia is cemented with calcite (Brcem) and the laminite is silicified in some parts (SiLam). In the detail (inset), breccia clasts have radiaxial-fibrous calcite rims (Srim) and are deposited on the bottom of an irregular cavity. Collapse breccia pore is filled with a stratified infill material (Inf) on the bottom as a geopetal indicator and is cemented with grayish quartz (Gqtz). (B) Calcite vein with radiaxial-fibrous calcite rims and filled with fine Inf locked on the irregularities of the wall toward the bottom as a geopetal feature. (C) Fault plane cuts previously BrLam with radiaxial-fibrous calcite rims and showing oblique downdip striations. (D) The Gqtz and barite (Bar) veins cut brecciated spherulitestone (BrSph). (E) Barite geode (Barg) in a vuggy pore associated with quartz veins. Barite was deposited after Gqtz. (F) Early Srim deposited around a clast of BrSph. Strat. = stratigraphic.

Collapse breccias have subrounded clasts that may suggest that carbonate corrosion occurred on borders and radiaxial-fibrous calcite rims around clasts due to cementation in an open pore space (Figure 7A). We observed clasts of host rock up to 10 cm wide rimmed by early calcite cement (Figure 7F, radiaxial-fibrous texture). In some cases, we observed a fine infill material associated with brecciated textures or veins that was deposited on the bottom of the structure, and we interpreted the infill material as geopetal feature and indicative of collapse (Figure 7A, B). The infill occurred after brecciation and formation of radiaxial-fibrous calcite cement, as shown by pore-filling order. Collapse breccia pores are mostly cemented by a last cement phase of gray quartz.

We also observed wide veins that are filled with several phases of calcite cement and quartz (Figure 8). These veins are distinct from other fractures described in the cores because they have large widths up to 12 cm, dipping ∼65°–72° and have internal brecciated fabric cemented with both calcite and quartz. They appear to have textures compatible with repeated opening and sealing such as crack seal (Ramsay, 1980). These structures have several cement phases, dissolution textures, and crosscutting relations compatible with recracking. We also observed quartz geodes filling vuggy porosity within the wide veins, although pervasive cementation by calcite is common (Figure 8A, bottom detail). In general, these veins have irregular contact with the host rock and locally show geopetal infill and vertically rotated fragments of host rock bedding planes (Figure 8B).

Figure 8. Wide brecciated crack-seal veins in well B. (A) Wide vein (Wv) with brecciated aspect and several phases of calcite cement. Contact with silicified spherulitestone (SiSph) host rock is irregular. Late quartz veins (Qv) cut wide calcite veins and host rock. Lower detail: Recracked fractures (Rf) formed by crack-seal and internal brecciation (IBr) appear to have been the predominant process. Upper detail: A breccia texture (Br) is observed just above the wide vein on the top of the core, showing rebrecciation evidence in the form of breccia clasts in younger breccias. (B) Wide brecciated vein with several clasts of host rock (Hrc) in the vertical position cemented with grayish quartz (Gqtz). On the top, the clasts lack organization. A shrubstone (Shr) is cut by the vein and shows horizontal shrub growth direction (GD). Yellowish quartz vein (Yqtz) cuts the shrubstone locally.

A fault plane that crosscuts collapse breccias and the wide veins (Figure 7C) dips 85° and shows oblique-slip lineations with 73° of rake, suggesting normal-oblique movement. The minimum throw is at least 0.5 m based on core size, but the exact throw value is potentially larger because offset correlative beds are beyond the core limits. This fault is associated with swarms of narrow structures (<1 mm wide), with cataclastic internal structure that, based on their cataclastic texture, are possibly small displacement faults contemporaneous with the large fault and younger than the collapse breccias. Fault breccias can be composed of several different types of host rock clasts and rebrecciated breccias (breccia clasts within texturally younger breccia) that are cemented by calcite and quartz. Textural evidence of breccia clasts within fault breccia is compatible with recurrent brecciation. We observed clasts of older breccias within younger breccias, which is evidence of more than one brecciation episode (Figure 8A, top detail). These breccias appear to be organized in bands, and some of the clasts show a subrounded shape.

Narrower younger veins crosscut the wide veins and the host rock, dipping 20°–90°. These are often cemented by quartz or quartz plus barite (Figure 7D). It is common for these younger quartz veins to have variable dip angles and cut across previous veins (Figure 8A, Qv). Some quartz veins run parallel to the bedding in some locations. Barite mineralization occurred after quartz mineralization and fills remaining porosity in quartz veins or vugs, sometimes creating barite geodes when pores are large (>1 cm), with geodes showing preserved porosity even after cementation (Figure 7E).

Petrography

Asymmetric pore fillings occur as a geopetal feature at the bottom of pores and are made of microcrystalline calcite and microcrystalline quartz (Figure 9A, B). Microcrystalline calcite infill is commonly dolomitized and is crosscut by younger fractures filled with quartz. Calcite rims around breccia clasts and fractures from well B show radiaxial-fibrous texture (Figure 9A, D), and where present, geopetal microcrystalline calcite overlaps it.

Figure 9. Photomicrographs from well B thin sections. (A) Host rock clasts (HRC) with radiaxial-fibrous calcite rims (SR). Breccia pores are filled by micritic infill (MI) forming a geopetal feature and megaquartz cement (BQ). (B) Vuggy pores and fractures cemented by quartz. Several pores have MI deposited at the bottom of the pore, followed by BQ. Quartz veins (QV) link vug networks and are cemented by the same quartz phase. Some vugs are rimmed by radiaxial-fibrous calcite (SR) and show clasts of radiaxial-fibrous calcite rim (SRC) floating in the MI. (C) Spherulitestone with a vuggy fracture filled with SR and barite (B). Spherulites were originally formed in a Mg-silicate clay matrix now substituted by quartz. The SR, dendritic calcite (DS), and spherulites show different growth directions (GD), marked by arrows. (D) Fracture filled by SR and showing preserved open aperture. (E) The SR showing dissolution features (DSR). Pore is filled by quartz (QTZ) and B. Radiaxial-fibrous calcite rim relicts (SRR) are preserved within QTZ cement. (F) The QTZ with solid bitumen (SB). Microbrecciation (MB) visible on the left wall. (G) Energy-dispersive x-ray spectroscopy map showing the presence of a calcitic host rock protolith (Cal), commonly substituted by dolomite (Dol) and cemented with QTZ and B.

Some quartz veins show scattered irregular pieces of fracture wall that we interpret to be dissolution features and relict of radiaxial-fibrous calcite rims partially dissolved and cemented by quartz (Figure 9E, SRR). Euhedral calcite is seen filling vuggy pores in host rock. Solid bitumen is commonly found filling remaining porosity in fractures (Figure 9F, SB). Dendritic calcite with variable growth directions fills vuggy fractures (Figure 9C). Barite precipitates on dendritic calcite or fill pores in combination with quartz cement and saddle dolomite in fault-related breccias (Figures 9G, 10D). Microbrecciation observed in some locations may be cataclastic, chemical wear, or hydraulic (Figure 9F, MB).

Figure 10. Photomicrographs of the normal-oblique fault zone in well B. (A) Core section where the fault was observed. It contains a brecciated laminate (Brlam) cemented with calcite (Brcem) and oblique striations on fault plane (see Figure 7C). (B) Plane-parallel transmitted light image showing quartz vein (QV) and Brcem sheared by the fault. The fault is mineralized with saddle dolomite (SD). (C) The Brcem filled with quartz (Qtz) and SD. (D) Energy-dispersive x-ray spectroscopy map showing porous fault breccia filled by Qtz, SD, and barite (B). HRC = host rock clast.

The fault surface observed in well B is cemented with minerals such as saddle dolomite, barite, and quartz (Figure 10D), which are exotic to the original calcitic host rock composition. The fault brecciated the host rock, and a quartz cement was deposited discontinuously between the clasts (Figure 10C). Large crystals of barite and saddle dolomite fill more than 50% of fault breccia pores. Shear dislocation is clearly seen in thin section (Figure 10B) and in core (Figure 10A) with associated brecciation.

Sequence of Events

The sequence of brittle deformation events in well B is shown in Figure 11. The brittle deformation sequence initiates with brecciation by collapse (Figure 11A). Collapse breccia clasts are rimmed by radiaxial-fibrous calcite. Pore space between clasts is infilled by a fine material deposited at the bottom, with silica filling the rest of the pores. Wide veins seem to be contemporaneous with collapse breccias and show crack-seal and internal brecciated texture. Younger fault-related breccias crosscut previous structures and show rebrecciation textures (Figure 11B). Microbrecciation is observed locally. Younger veins filled with barite and quartz crosscut all other older structures (Figure 11C). Locally, barite geodes are found where fracture widths are centimetric sized. Solid bitumen is found as the last phase filling fracture pores.

Figure 11. Sequence of brittle deformation events in well B based on crosscutting relationships. (A) Collapse breccia cemented by radiaxial-fibrous calcite rims around clasts. Breccia pores are filled by microcrystalline infill and silica. Wide veins also show internal brecciation and crack-seal texture. (B) Faulting, several generations of breccias and microbrecciation. Breccias have clasts from host rock and are commonly rebrecciated. (C) Quartz veins and barite geodes, which sometimes show solid bitumen fill.

Fluid Inclusions

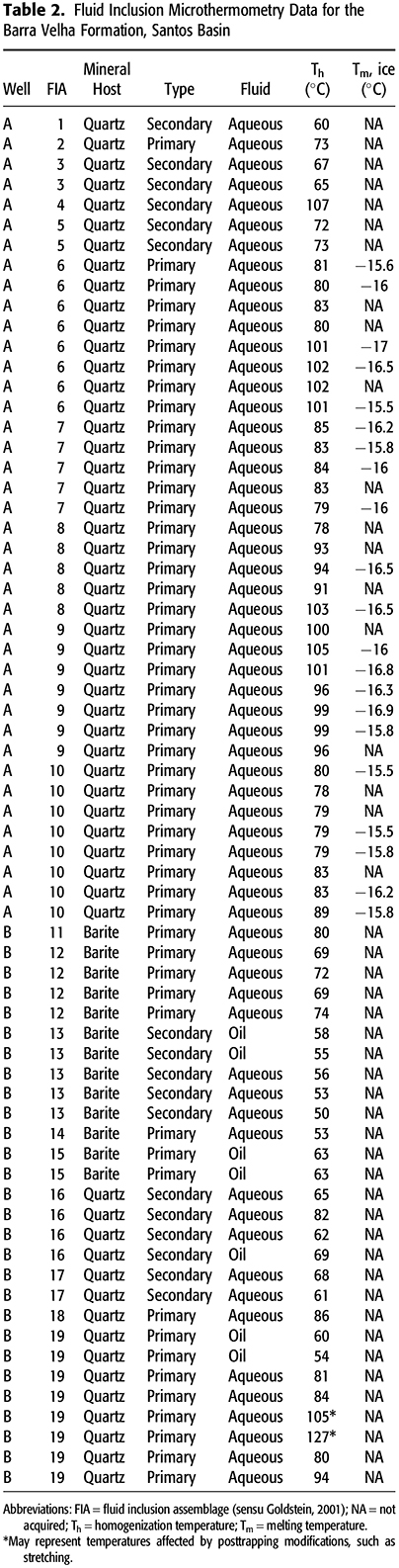

Fluid inclusions are hosted in quartz and barite cements (Figure 12; Table 2). The inclusions are two phase (liquid + vapor) and liquid rich at room temperature. A total of 68 inclusions were measured for total homogenization temperatures (T_h) reached by bubble disappearance. Unfortunately, we could not measure the eutectic temperature of any fluid inclusion, and in many cases final ice-melting temperature was not measured due to fluid inclusion small sizes.

Figure 12. Fluid inclusion microthermometry and geochemical analysis from the Barra Velha Formation. (A) Boxplot showing homogenization temperatures (Th) of fluid inclusion assemblages (FIAs) hosted in barite and quartz cements. Yellow line shows temperature at Top Barra Velha Formation measured in the wells. (B) Primary oil inclusions in quartz in well B. (C) Primary inclusions of oil and water in barite cement filling vuggy porosity in well B. (D) Primary oil inclusions seen under ultraviolet light, showing yellowish fluorescence. (E) Graph of ³He/⁴He versus ⁴He/²⁰Ne. Air composition is shown by the red square. Mixing lines between air, crustal, and primordial He composition (mantle) are shown by dashed curves (Torgersen and Jenkins, 1982). (F) Graph of Cl/Br versus Na/Br. Seawater composition is shown by the red square. The dotted line shows seawater evaporation trend.

Quartz-hosted fluid inclusions form both primary and secondary FIAs. Primary FIAs were found along quartz crystal growth zones or in small clusters within the nuclei of quartz crystals. The inclusions are usually rounded, but some have preserved rectangular shapes with sharp edges (Figure 12B). The T_h range from 73°C to 105°C, whereas ice-melting temperatures range from −17°C to −15.5°C, corresponding to fluid salinities ranging from 19 to 20 wt. % NaCl equivalent (Figure 12; Table 2).

Secondary FIAs comprise aqueous and oil inclusions found along microfractures or are dispersed in quartz crystals. The inclusions are rounded, with T_h ranging from 61°C to 107°C (Figure 12; Table 2).

Barite-hosted fluid inclusions also consist of both primary and secondary FIAs. Primary FIAs trapped aqueous and oil inclusions along barite crystal growth zones. The inclusions were mostly oval, with elongated shapes (Figure 12C, D), showing T_h ranging from 53°C to 74°C. Secondary FIAs were observed in fractures or isolated within the barite crystal. Usually, their shapes are oval or rounded, and they homogenize at temperatures ranging from 50°C to 58°C.

Overall, the T_h of quartz-hosted primary aqueous inclusion for well A range from 73°C to 105°C (n = 34), whereas in well B, the T_h of primary aqueous inclusions in quartz range from 54°C to 127°C (n = 15). In contrast, barite-hosted primary aqueous inclusions in well B show T_h ranging from 50°C to 80°C (n = 8). In comparison, the present-day temperature of the top interval of the Barra Velha Formation in the wells is ∼70°C.

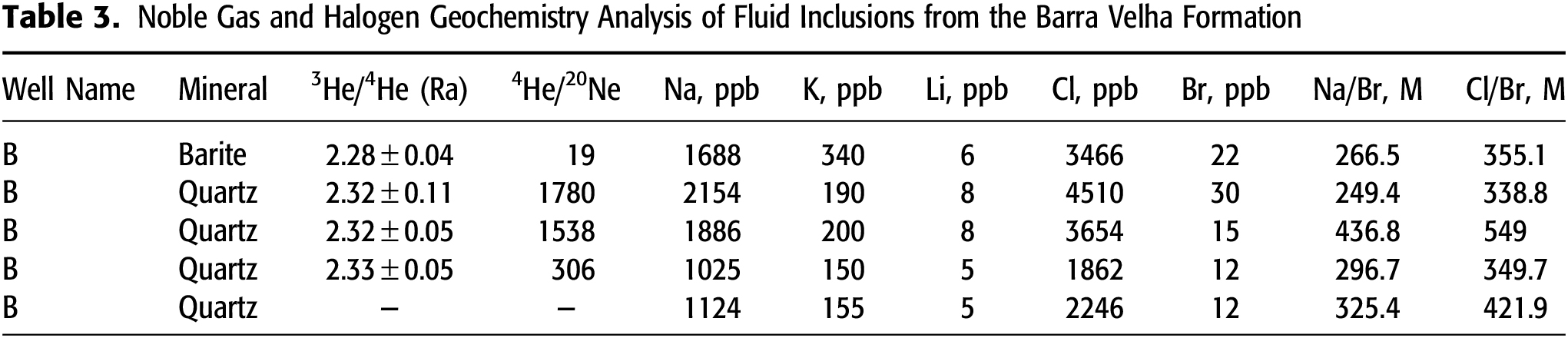

The bulk crush-leach analysis of the inclusions showed that noble gases have a heavy isotopic composition, with ³He/⁴He values of ∼2.3 Ra—distinctly heavier than the air ratio Ra = 1.39 × 10⁻⁶. Halogen ratios (Na/Br and Cl/Br) show composition on the evaporitic trend for seawater (Figure 12E, F; Table 3).

O and C Isotopes

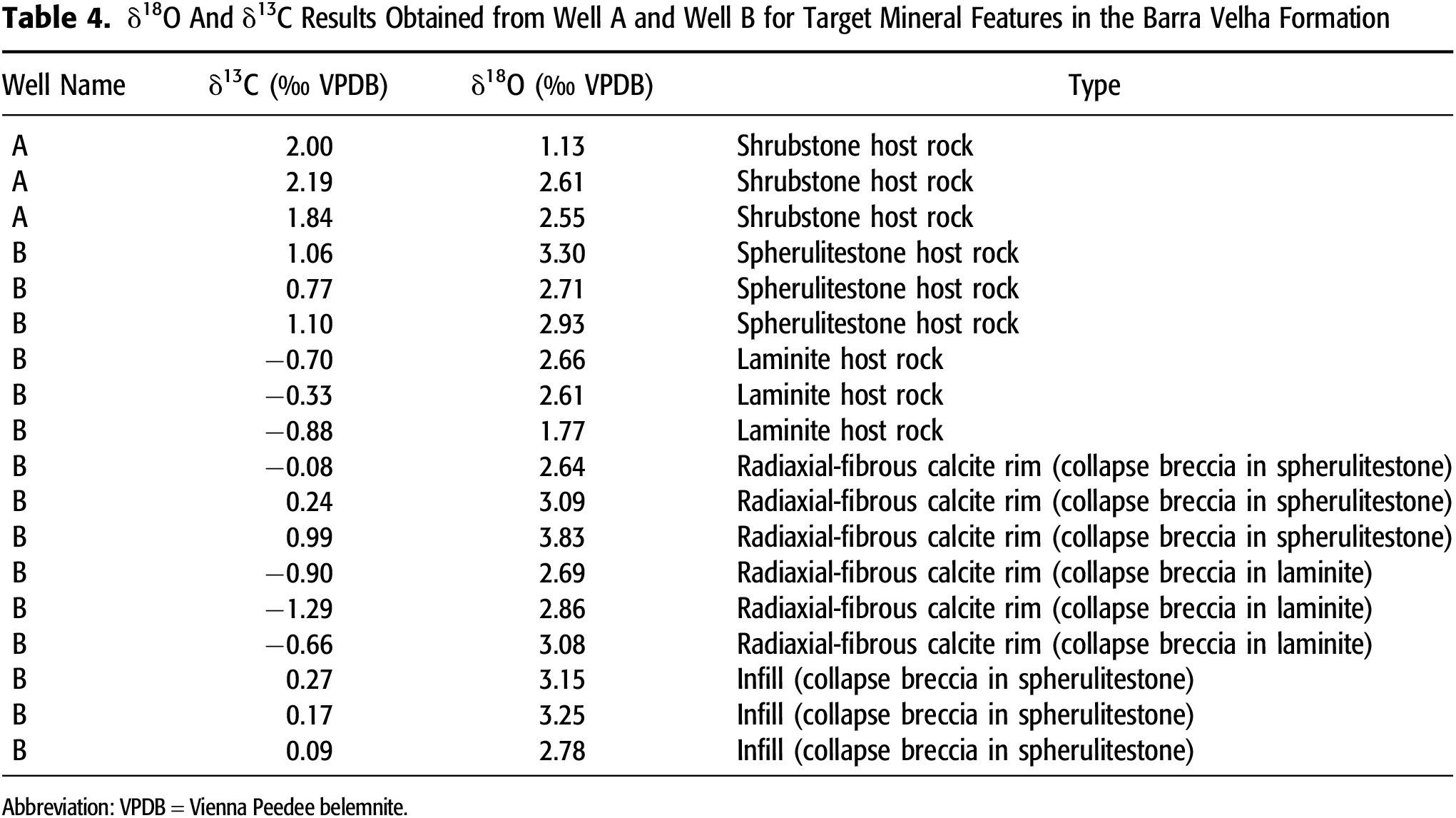

The δ¹⁸O and δ¹³C values (normalized to VPDB) of various carbonates range from 1.13‰ to 3.83‰, and from −1.29‰ to 2.19‰, respectively (Figure 13; Table 4). The δ¹⁸O composition is positive for studied samples. Variations in δ¹³C are dependent on the host rock type and either show positive or negative values. For example, shrubstones in well A show the highest δ¹³C values of up to 2.19‰, whereas spherulitestone has lower δ¹³C values between 0.77‰ and 1.10‰, and laminite even shows negative δ¹³C values in the range between −0.88‰ and −0.33‰. Radiaxial-fibrous calcite rims around collapse breccia clasts in well B also show negative δ¹³C as low as −1.29‰. The microcrystalline calcite material infilling collapse breccia pores in well B has δ¹³C values between 0.09‰ and 0.27‰. Data from previously published works are shown for comparison in the plot and suggest that our data plots on the high-end spectrum of δ¹⁸O obtained for the Barra Velha Formation.

Figure 13. Carbonate isotope compositions (‰VPDB [Vienna Peedee belemnite]). All samples have positive δ¹⁸O, a common feature in evaporitic settings. Most samples also have δ¹³C⁺, except for laminate host rock and radiaxial-fibrous calcite rims from collapse breccias. Data adapted from Farias et al. (2019), Lima et al. (2020), and Pietzsch et al. (2020) are shown for comparison.

U-Pb Geochronology

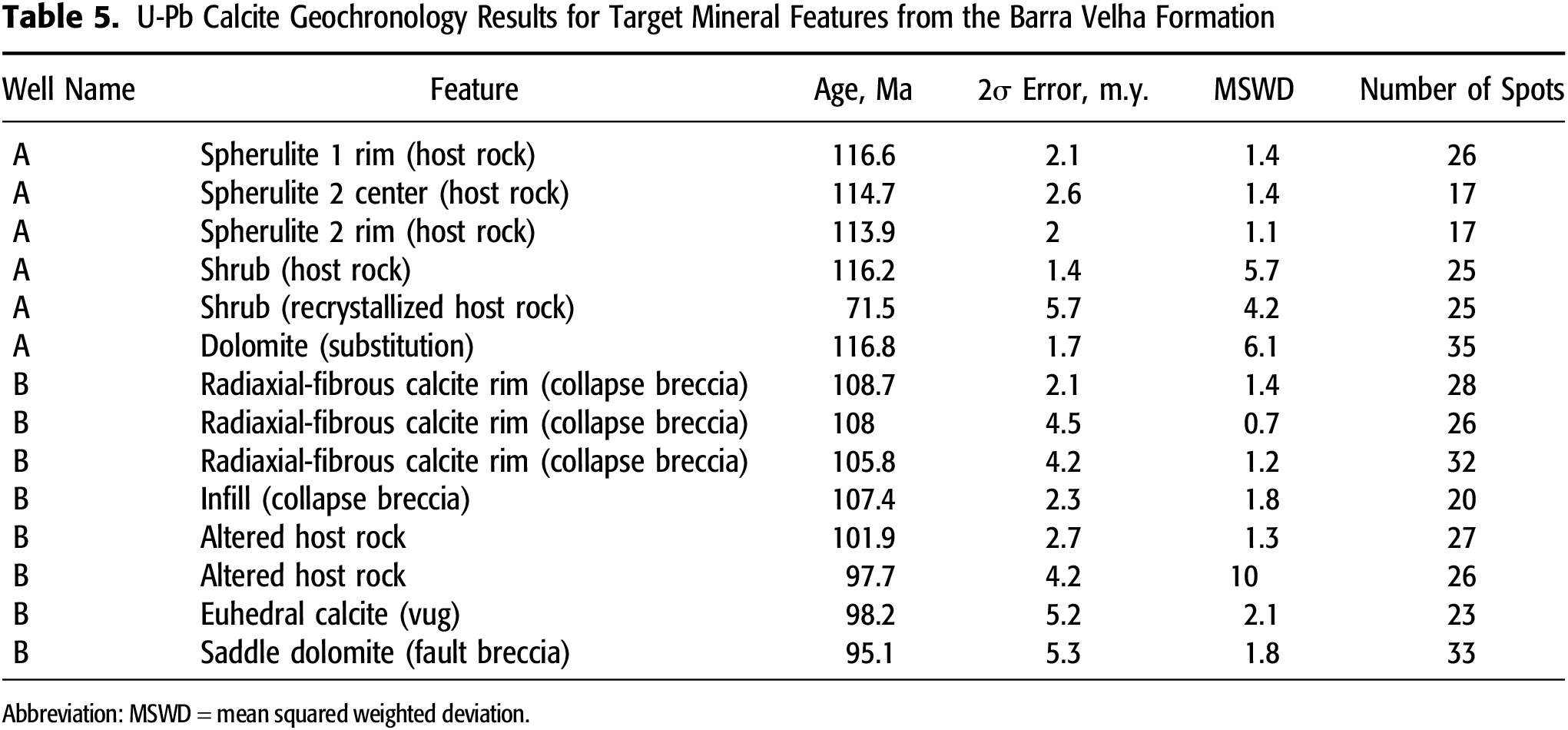

We obtained 14 U-Pb ages for calcites and dolomite in host rock, breccias cements, and fractures and fault mineralizations from wells A and B (Table 5; Appendix). The oldest age obtained for a host rock is 116.6 ± 2.1 Ma, in a calcite spherulite (spherulite 1) from well A in an individual sample in the lower section of the Barra Velha Formation. Similar ages were obtained for host rock shrubs from the cored upper part of the Barra Velha Formation at 116.2 ± 2.8 Ma. These results are compatible with an Aptian age (i.e., 113.0–121.4 Ma) for the host rock. We measured U-Pb ages of spherulites at their centers and rims to test the difference in ages, being 116.6 ± 2.1 Ma (spherulite 1) and 113.9 ± 1.9 Ma at the rims (spherulite 2), and 114.7 ± 2.6 Ma at the center (spherulite 2). One sample in well A yields a younger age for a calcite shrub in host rock of 71.5 ± 5.7 Ma.

Dolomites that substitute infill geopetal material found in fractures show a very early age of 116.8 ±1.7 Ma. Radiaxial-fibrous calcite rims around breccia clasts date to at least 108.7 ± 2.1 Ma, suggesting a difference in age to the host rock of 8 Ma. Microcrystalline calcite infill within breccia pores has a slightly younger age of 107.4 ± 2.3 Ma. Altered host rock clasts in breccias have an age of at least 101.9 ±2.7 Ma, an age younger than the Aptian deposition that is interpreted to be due to alteration. Euhedral calcite cement found in well B host rock vugs has an age of 98.2 ± 5.2 Ma. Dolomite associated with the fault in well B was dated 95.1 ± 5.3 Ma.

At two locations in the chalcedony cement within the fractures of well A, we detected high amounts of uranium, reaching values of up to 2 ppm. Despite these local observations, high uranium content in chalcedony is unusual because its chemical composition does not include uranium either as a major component or as a minor substitution element.

DISCUSSION

Barra Velha Formation Age

Depositional Age and Uncertainties

Our host rock U-Pb ages are relevant to recent discussions about the age of the Barra Velha Formation. The Barra Velha Formation has been historically dated as Aptian by biostratigraphy (mostly ostracodes and pollen) or correlations with ⁴⁰Ar-³⁹Ar absolute ages from volcanic intrusions (Moreira et al., 2007).

Moreira et al. (2007) dated basalts contemporaneous to the Barra Velha Formation, obtaining an age of 117 Ma by the ⁴⁰Ar-³⁹Ar method, which is very close to the age we obtained for the host rock of the Barra Velha Formation (ca. 116 Ma). Louback et al. (2023) dated subaerial basalts in the Bacalhau oil field and obtained ages ranging from 109.9 ± 0.2 to 116.9 ± 0.2 Ma using the whole-rock ⁴⁰Ar-³⁹Ar dating method. Carbonate layers from the Barra Velha Formation are overlying these basalts, suggesting that the upper part of the Barra Velha Formation must have a maximum age of 116.9 Ma in this location. However, it is important to note that Moreira et al. (2007) did not provide the analytical data, hindering the assessment for the quality of the obtained age, and Louback et al. (2023) stated that their data are difficult to interpret because no age plateau exists.

However, recent studies based on planktonic foraminifera and correlation of δ¹³C profiles of oceanic anoxic events in the Santos Basin and Tethyan sections constrained the overlying evaporite rock to be Barremian or lower Aptian (Tedeschi et al., 2017; Pietzsch et al., 2020; Sanjines et al., 2022), situating the Barra Velha Formation at a substantially older age than what studies based on U-Pb geochronology (Rochelle-Bates et al., 2022; Lawson et al., 2023) and current stratigraphic framework suggest (upper Aptian) (e.g., Moreira et al., 2007).

The U-Pb geochronology using LA-ICP-MS has only recently been used to date calcites from the Barra Velha Formation (Rochelle-Bates et al. 2022; Lawson et al., 2023; Brito et al., 2024). Rochelle-Bates et al. (2022) published the first U-Pb ages for the carbonates of the Barra Velha Formation. In their samples, they found ages to be consistently younger than the Aptian and concluded that the original depositional age was commonly erased by an Albian calcite recrystallization event, probably triggered by enhanced heat flow.

Lawson et al. (2023) reported petrographic, geochronologic, and isotopic results for two samples from different locations in the Santos Basin. They obtained ages for the Barra Velha Formation of 114.5 ± 4.7 and 109.7 ± 9.3 Ma based on the LA-ICP-MS method and 115.8 ± 1.6 Ma based on the isotope dissolution method. Reported ⁸⁷Sr/⁸⁶Sr ratios of 0.7141 and 0.7134 and clumped isotope temperatures lying between 60°C  ± 6°C and 45°C  ± 5°C are interpreted as not being representative of depositional conditions. However, the authors concluded that the combination of petrography and isotopic analysis suggested that these rocks have experienced only minor levels of early burial diagenesis and that the U-Pb ages obtained can be interpreted as depositional, with the Barra Velha Formation being deposited during the late Aptian.

Lastly, Brito et al. (2024) reported several ages from the Barra Velha Formation, ranging from 125 to 82 Ma. They identified dolomite cements with older ages (125 ± 3 to 122 ± 4 Ma) than primary calcite components in the host rock (116 ± 2 to 110 ± 2 Ma), suggesting that the carbonate host rocks did not preserve their pristine U-Pb geochemical signature. The reset of U/Pb ratios may have been triggered by the gain of U or the loss of Pb during diagenesis and hydrothermal alteration.

Our U-Pb ages for host rock calcite shrubs and spherulites from well A range from 113.9 ± 1.9 to 116.6 ± 2.8 Ma, an age range similar to that reported by Lawson et al. (2023) and Brito et al. (2024) and compatible with a late Aptian age. The U-Pb calcite geochronology results can be affected by calcite recrystallization that can open the system and reset the U/Pb ratios. Thus, caution must be exercised in regions of the Barra Velha Formation that have been affected by intense diagenesis. Lima et al. (2020) showed negative δ¹⁸O values between −5.70‰ and −1.93‰ for fascicular calcites in host rock shrubs of the Aptian Macabu Formation in Campos Basin, which suggests recrystallization, because it shows a lower isotopic ratio than positive primary evaporitic signatures. A similar process may occur in the Barra Velha Formation because they are analogous formations from neighboring basins. However, for our dated depositional features, both the shrub and the spherulite show only minor alterations and lack textural evidence for widespread recrystallization when observed under transmitted light and cathodoluminescence (Figure 5).

Because both ⁴⁰Ar-³⁹Ar and U-Pb ages are suitable for recording alteration ages, dedicated studies to assess the quality of these geochronometers within the conditions of the Barra Velha Formation must be developed to achieve a consensus for its depositional age. Due to the lack of evidence for a widespread recrystallization episode in our samples, we infer that the ages we obtained are representative of the depositional age of the Barra Velha Formation host rock, although we recognize the risk of recrystallization or U/Pb reset affecting our samples because we did not have a δ¹⁸O analysis on our host rock calcite shrub samples to assess its geochemical preservation.

Possibilities for Age Variation

It is important to note that the age obtained in the Barra Velha Formation may vary depending on the depth of the sample and distance from the evaporite rocks. The age we obtained for spherulites (113.9 to 116.6 Ma) is close to the age of the calcite shrub (116.2 Ma), although they are from different depths (∼250 m [∼820.2 ft] apart) and from different sections in the upper and lower Barra Velha Formation. There are at least three explanations for this age similarity in different depths.

1. Widespread recrystallization of the Barra Velha host rock would reset U-Pb ratios and erase age differences to the same recrystallization age. This would make samples from different depths and with different depositional ages be of the same age after recrystallization, when analyzed using U-Pb geochronology.

2. Spherulites are typically depicted as diagenetic concretions (e.g., Lima and De Ros, 2019), grown in an early eodiagenetic environment. The fact that the spherulites grow during diagenesis may explain why the age is like that of the shrubs in the upper section, because they grow late in relation to actual host rock deposition. The spherulites in the lower sample could have been growing as an eodiagenetic concretion contemporaneously with the shrubs in the upper sample.

3. A rapid deposition rate would decrease the age variation between these two samples. The fact that the samples were obtained from a mounded carbonate in well A may suggest a faster deposition rate than the common Barra Velha Formation (not mounded). The deposition rate in carbonate mounds could be influenced by enriched fluids sourced by the underlying faults and hydrothermal vents, which could increase the deposition rate locally.

The difference in age between spherulite rim (spherulite 2) (113.9 ± 2.0 Ma) and center (114.7 ±2.6 Ma) is small, suggesting that the process of nucleation and growth of spherulites is fast, considering that our obtained ages are depositional (or early diagenetic for spherulites). Two spatially separated spherulite rims (spherulites A and B) (Figure 11B; Table 5) differ by ∼2.7 m.y., although the discrepancy comes close to the (2σ) age uncertainty (2.1 and 2.0 m.y., respectively). Further systematic high-resolution dating would be needed to test the hypothesis of diachronous episodic diagenetic/chemical reactions forming spherulites (e.g., Wright and Barnett, 2015).

We also found a younger age in host rock shrub from well A at 71.5 ± 5.7 Ma during the Maastrichtian (Late Cretaceous), probably related to recrystallization, and in altered host rock breccia clasts from well B at 97.7 ± 4.2 and 101.9 ± 2.7 Ma during the Cenomanian/Albian. In this case, the younger recrystallized shrub shows large areas with dark luminescence, suggesting that here a widespread recrystallization or alteration episode occurred, near a fracture (Figure 5C). Although the recrystallization episodes we found may be related to modifications related to burial, hydrothermal alteration, or volcanism, the reason can only be determined with additional geochemical and petrographic evidence.

Two of our recrystallization ages are close to those found by Rochelle-Bates et al. (2022) during the Albian. These results reinforce evidence for recrystallization in the Albian. However, this does not exclude younger recrystallization events that may have happened during the Maastrichtian, as shown by our sample dated at ca. 71 Ma. As we discuss, if recrystallization is related to discrete flow events and enhanced heat flow (possibly through faults triggered by hydrothermal alteration or magmatic events), then multiple spatially and temporally distinct recrystallizations may have occurred.

Another possible interpretation for this younger shrub age is formation by diagenetic fluids percolating the host rock. In well B, it is possible to identify dendritic calcite growing inside vugs with variable growth direction, indicating a younger diagenetic formation (Figure 9C, DS). In other parts of the Barra Velha Formation, different types of calcite textures can be associated with different processes of formation (Rodríguez-Berriguete et al., 2022), which may include diagenesis. In the core, we observed shrubstones with horizontal growth direction (Figure 8B), a position not usually described for depositional shrubs in the Barra Velha Formation. These different mechanisms of shrub formation would also create age discrepancies.

Brittle Structure and Hydrothermal Alteration

Structural Characterization

We observed in both wells the presence of brittle structures and bed tilting that showed that the Barra Velha Formation experienced substantial deformation during burial. We discuss below, based on the structural data observed in the core, that the genesis of the fractures could be associated with both burial and fault deformation.

Burial-related fractures usually have a regular geometric relationship perpendicular to bed interfaces that act as a mechanical boundary. It is a common feature of burial fractures to be influenced by beds, usually resulting in bedding perpendicular opening-mode fractures that may show some degree of regular spacing (e.g., Narr and Suppe, 1991). Core fractures have a range of dip angles (20° to 90°), and most of them are opening-mode fractures. In some cases, it is possible to observe bed-perpendicular configurations (Figure 3F). Where the perpendicular orientation relative to bedding remains, varying fracture dips may be related to the bedding tilt that also may have tilted early fractures. We infer that part of the fracture population formed as bed-perpendicular opening-mode fractures in a burial setting. During subsequent deformation, some of these fractures were later rotated along with enclosed beds.

Deformation caused by fault zones is another possible reason for the formation of fractures in the Barra Velha Formation (Fernández-Ibáñez et al., 2022b, Wennberg et al., 2023, Mendes et al., 2024). The presence of faults in core (and on seismic profile) and high bedding dip angles (up to 70°) are compatible with fault deformation. The wide range of bed tilt values within cores could reflect fault displacement. A striated fault plane is present in the cored interval in well B. This fault shows a steep dip angle (85°) and a normal-oblique striation (73° of rake), suggesting a transcurrent component of motion that is compatible with the high angle of faults observed in seismic lines (Figure 2). These faults caused part of the brittle deformation observed in the reservoir and affected the evaporite section as well, as evidenced by the faulted Barra Velha Formation top (Figure 2). Fault zone architecture comprising a damage zone that envelops a fault core where slip is usually concentrated and creates cataclastic texture (e.g., Caine et al., 1996) may account for the presence of fault breccias in the cores. Many oblique fractures and small faults may be parts of damage zones surrounding faults or being part of a fault core, where cataclastic textures prevail.

In this interpretation, subsidiary small displacement faults with cataclastic fill such as those observed in core and petrography (Figure 3E, Sf) could be created by slip of a network of larger faults, like the faults imaged in seismic section (Figure 2). The narrow fractures observed in the core in micropetrography have cataclastic fill. These cataclastic zones are cut by later quartz veins (Figure 4E). This suggests the presence of shear deformation, probably linked to faults, during an early stage.

Brecciation Environment

The difference in age between radiaxial-fibrous calcite rims (Figure 7A) on the collapse breccia clasts (ca. 108 Ma) and spherulite and shrub in the host rocks (ca. 116 Ma) shows that the formation of these collapse breccias happened no more than approximately 8 m.y. after the deposition of the host rock. The process of brecciation is probably related to collapse of an open cavity that occurred in a shallow burial setting, as burial was slowly increasing during the sag phase of the basin in which the Barra Velha Formation was depositing (e.g., Moreira et al., 2007; Wright, 2022). Recent estimates for the deposition rate of the Barra Velha Formation range between 54 and 80 m/m.y. (Pietzsch et al., 2018; Farias et al., 2019). Considering the 8 m.y. of difference between radiaxial-fibrous calcite rims around breccia clasts and host rock age, the breccias would have been formed at a maximum burial depth range of 432 to 640 m, but possibly much shallower and younger because the age of the radiaxial-fibrous calcite rim is a maximum limit for the age of brecciation, which must have occurred before. The common presence of geopetal features formed by the infill of microcrystalline calcite and quartz in breccia pores and veins is evidence of the percolation of sediment through the fracture/breccia network or decantation of small broken fragments of the brecciation process in the pores, which also points toward a shallow burial environment and reinforces the interpretation of a collapse breccia (e.g., Shukla and Sharma, 2018).

Radiaxial-fibrous calcite forms, such as the ones coating the collapse breccia clasts, are usually interpreted as being related to supersaturation in calcite (e.g., Richter et al., 2011; Pietzsch et al., 2022), and geochemically, the radiaxial-fibrous calcite rims in the collapse breccias are like the host rock shrubs. The isotope data of radiaxial-fibrous calcite rims around collapse breccia clasts (Figure 13; Table 4) show positive δ¹⁸O (2.64‰ to 3.83‰), suggesting deposition from evaporitic waters with composition similar to that of the host rock shrub (1.13‰ to 2.61‰). However, the δ¹³C is lower than the shrubstone values and closer to the laminate host rock values, which may indicate some residence time of fluids in the subsurface in contact with laminites, because these show a lower δ¹³C ratio due to microbial influence (Souza et al., 2018). Thus, the presence of radiaxial-fibrous calcite rims in collapse breccias may be evidence of cementation by fluids with composition close to the evaporitic surficial lake waters that deposited the host rock and for a shallow brecciation during early burial (∼400–600 m [∼1312–1968.5 ft] of maximum depth).

The δ¹⁸O fractionation from water to calcite depends on temperature, and thus the estimation δ¹⁸O_water composition may be different from the obtained δ¹⁸O_calcite composition. We estimated δ¹⁸O_SMOW-water (standard mean ocean water [SMOW]) for the range of δ¹⁸O_VPDB-calcite obtained in our study, using conversion equations in O’Neil et al. (1969) and 40°C of temperature. We obtained a range of δ¹⁸O_SMOW-water between 7.5‰ and 10.3‰, which reinforces the interpretation of evaporitic origin for the parental fluids.

In well B, the textural evidence of collapse breccias rimmed by radiaxial-fibrous calcites includes filled cavities with cracks that propagated through the host rock and fallen clasts that deposited at the bottom of the cavities created by the brecciation (Figure 7A). These textures suggest that these collapse breccias probably initially formed by ascending fluids associated with chemical corrosion dissolving surrounding host rock or shallow karstification that opened a cavity, which was later collapsed and cemented during early burial.

Vent and Fault Conduits

Vents are commonly found along faults in lakes of rift basins and are usually associated with carbonate mounds (e.g., Renaut et al., 2013; Dekov et al., 2014; DeMott and Scholz, 2020; DeMott et al., 2021). Mercedes-Martín et al. (2019) proposed, based on chemical modeling, that vents actively controlled lake water composition with silica input during the deposition of the Barra Velha Formation, but the existence of vent conduits was never proved with rock data. Vital et al. (2023) suggested that carbonate towers within the Barra Velha Formation represent outbreak of geothermal fluids enriched in Ca²⁺ and HCO₃⁻ along deep-seated faults. Strugale et al. (2024) suggested that in the Campos Basin, deep-seated faults reactivated during the postrift sequence (i.e., contemporaneous with the Barra Velha Formation) may be controlling the ascension of hot fluids that triggered the formation of mounds and a syndepositional hydrothermal event (Barremian-Aptian diagenetic event), constrained by U-Pb ages, petrography, and fluid inclusion temperatures.

For the well B core, we described ∼12-cm-wide veins showing a crack-seal texture that represents repeated fracture opening (Figure 8). The width of these veins is much larger than that of any other fracture found elsewhere in the reservoir, setting these structures apart from the other fractures. Large crack-seal veins are commonly found in fault zones (e.g., Bastesen and Braathen, 2010; Balsamo et al., 2019) and may be formed by cyclical variations in fluid pressure (Petit et al., 1999). The large width, internal brecciated fabrics, presence of vertically rotated fragments of host rock bedding, and crack-seal texture are also compatible with these veins being fluid escape structures enlarged by reactivation, usually caused by energetic fluid ascent and high pressure, the diagnostic features of fluid conduits. We interpret these structures to be hydrothermal vent conduits that were reactivated many times, allowing fluids to ascend to the surface in a hot springs setting. Such vents are commonly associated with spring mounds and hydrothermal overpressured fluid injection (e.g., Della Porta, 2015; Brogi et al., 2017), such as the ones observed in seismic line (Figure 2, mound). These vents may have been initiated by faults and may be part of a fracture network along a damage zone, later used by fluids as a recurrent path. The wide veins are cemented with calcite or quartz, suggesting that the composition of the vent fluids was variable. The pattern contrasts with the generally simpler mineral deposit sequences in some regional tectonic fractures in which ambient fluids and local diffusion may dominate precipitation (e.g., Laubach et al., 2019; Denny et al., 2020).

The presence of carbonate mounds in the Barra Velha Formation has previously been described (e.g., Buckley et al., 2015; Corrêa et al., 2019; Simo et al., 2019; Mendes et al., 2022; Zeller et al., 2022), but our observation is the first interpretation of vent conduits in cores, which we infer to have actively conducted ascending fluids, possibly using fault zones, to modify shallow portions of the Barra Velha Formation or to reach the surface, where it formed carbonate mounds. Although the upper part of the Barra Velha Formation historically has been depicted as a postrift or sag phase deposit (Moreira et al. 2007), some authors have shown evidence of active tectonism synchronous to the upper Barra Velha Formation deposition (Karner and Gambôa, 2007; Adriano et al., 2022). Evidence from cored rock data showing soft sediment deformation structures triggered by early/syndepositional fault movements reinforce the interpretation of active faults during the deposition of the upper section of the Barra Velha Formation in some parts of the Santos Basin (Terra et al., 2024).

Farias et al. (2019) estimated calcite crystallization temperatures in the Barra Velha Formation using clumped isotope thermometry. The range of temperatures obtained varies from 46°C to 73°C, suggesting that calcite precipitated from hot springs. Although clumped isotope thermometry currently may suffer from calibration uncertainties, we believe that these temperatures support our interpretation of vents with hot fluids having occurred locally in the Barra Velha Formation. These vents probably formed part of the carbonate reservoir, through the deposition of spring mound carbonates (e.g., Della Porta, 2015), and could have contributed to early or postburial diagenetic and hydrothermal modifications. These vent-related features would be localized where fault zones allowed fluids to rise up toward shallow portions but would not exist where deep-reaching faults were not present, a situation in which the deposition of common alkaline-lake Barra Velha Formation facies would prevail without significant hydrothermal modifications and spring mound deposits. Even though the Barra Velha facies is usually described as alkaline-lake deposits (Wright and Barnett, 2015), recent analogues in the East African Rift and the Basin and Range (United States) show that these types of deposits coexist with localized spring mounds and travertine deposits rooted by fault zones that actively conduct uprising fluids (e.g., Renaut et al., 2013; Dekov et al., 2014; Guo and Chafetz, 2014; Della Porta, 2015).

We observed dendritic calcite growing in vuggy fractures in well B, followed by barite mineralization (Figure 9C). In this context, the dendritic shape is different from the host rock shrubs and radiaxial-fibrous calcite rims in collapse breccias, displaying more elongated shapes and varied growth direction. The dendritic calcite appear to be a phase of cement filling vugs. The occurrence of dendritic shape in calcites within the Barra Velha Formation has been described as associated with deposition in hydrothermal, travertine, or spring mound settings (Della Porta et al., 2017; Rodríguez-Berriguete et al., 2022). The dendritic shape may suggest proximity to vents or hot springs that would allow deposition of this distinct shape inside the vuggy pores.

Another interesting aspect is the horizontal shrub growth direction observed in the core of well B (Figure 8B). There are at least four interpretations for this feature.

1. This growth direction is primary, which would suggest growth in a mounded surface with inclination, other than the lake bottom.

2. The horizontal shrub is a rotated clast in a rudstone or collapse/sedimentary breccia. The clast could have been rotated during deposition and be cut by the wide vein later during burial.

3. The original shrubstone suffered hydraulic brecciation, which would imply an energetic fluid uprise, causing breakage and rotation.

4. The shrubstone was rotated during fault brecciation. However, we do not see evidence of cataclasis or intense fault deformation in this specific location.

The depositional ages obtained for the host rock within the carbonate mound in well A (116.2 ± 2.8 Ma) and for the evaporitic radiaxial-fibrous calcite rim cement within collapse breccias in well B (108.7–105.8 Ma) are close to or contemporaneous with the estimated age for the start of evaporite deposition and marine incursions in the Santos Basin at 113 Ma (Moreira et al., 2005). This implies that the hydrothermal vents may have been active, connected to the lake waters, and possibly feeding spring mounds contemporaneously with the deposition of the Ariri Formation.

Although there are controversial interpretations about the real topographic expression of the Barra Velha Formation mounds during deposition, observations in seismic lines indicate that the well A mounded feature is more than 400 m high. The pinnacle shape usually indicates a subaqueous environment that would allow the preservation of such geometry (Pentecost, 2005). Modern analogous subaqueous mounds can be seen in dry lakes such as the three United States lakes, Searles, Pyramid, and Mono, and Abbé Lac (Djibouti), with reliefs reaching more than 40 m high (e.g., Della Porta, 2015). However, there is no information about how much of these modern mounds is under the surface, having been buried by younger lake sediments. Shallower regions on top of the pinnacles would allow preferential anhydrite accumulation, whereas deeper portions would be suitable for accumulating more soluble evaporites such as halite (e.g., Tucker, 1991).

Exotic Mineralogy and Fillings

The mineralogy including barite, saddle dolomite, and quartz found in the fractures and in fault breccias is evidence of the participation of external fluids because they are chemically exotic to the geochemistry of the lake, host rock, or burial waters (e.g., Griffith and Paytan, 2012). The barite mineralization found in faults and fractures is not an original part of the calcitic host rock chemical composition. The presence of the exotic barite phase implies that mineralization must have had a deep fluid source that interacted with magmatic or basement rocks to yield the necessary barium source, and that it most likely subsequently rose through faults where mixing with sulfate infiltrated by seawater precipitated the barite. This is also supported by the low Na/Br and Cl/Br ratios observed in fluid inclusions. Dissolution of the overlying evaporites (anhydrite) is another possible mechanism to obtain a sulfate source. Although not confirmed in our study, evaporite dissolution is a mechanism that has been described as occurring in other areas of the Brazilian pre-Salt (e.g., Lima et al., 2020). This mechanism is commonly found in Mississippi Valley–type barite mineral deposits (e.g., Hanor, 2000) and is described to have yielded barite mineralizations in related Cretaceous African basins by hydrothermal alteration (e.g., Oden et al., 2015).

The barite found in the fault zone in well B core was precipitated along with saddle dolomite (Figure 10D), a mineral described as a key indicator of hydrothermal mineralizations, due to its distinct shape formed by rapid precipitation rate at temperatures above 50°C (Davies and Smith, 2006). Considering the U-Pb age of 95 Ma obtained from the saddle dolomite, it can be assumed that the process of hydrothermal mineralization of the fault zone at well B must have occurred during the Cenomanian (93.9–100.5 Ma), close to this age or before, seawater infiltrated through the fracture network into the carbonate mounds within the Barra Velha Formation, providing a sulfate source for barite mineralization. Before the seawater incursions in the Santos Basin, barite had not precipitated due to the lack of necessary sulfur. This may explain why barite is a late cement phase in fractures and is not present in early cementation phases. The high salinity and ion composition plotting on seawater evaporitic trend obtained from fluid inclusions (Figure 12F) supports the hypothesis of deep hydrothermal fluids mixing with evaporated seawater to deposit quartz and barite cements.

The carbonate mounds observed in the Barra Velha Formation are hundreds of meters high, as observed by seismic evidence (Buckley et al., 2015; Barnett et al., 2021; Zeller et al., 2022). Due to their high topographic expression, these mounds may have been directly in contact with seawater incursions for a long time during the deposition of the Ariri Formation, allowing seawater to infiltrate down through the fracture network and participate in the diagenesis. They are also likely to have been exposed when the lake water level was low, causing erosion, dissolution, and fracturing by collapse (Wright, 2022).

Where evaporites formed an early effective seal on top of carbonates, most likely where mounds are not present, uprising fluids passing through faults were impeded to flow to upper formations and flowed mostly under the evaporites, predominantly affecting the pre-Salt sequence. Preferential hydrothermal alteration just below the evaporite deposits has been described in the Brazilian pre-Salt carbonates and is evidence of the evaporites acting as a seal for uprising hydrothermal fluids where carbonate mounds are not present (e.g., Lima et al., 2020).

The late megaquartz found in fractures is commonly associated with barite and has been described in other pre-Salt areas as being extraformational, hydrothermal, and hosting high-temperature fluid inclusions (Lapponi et al., 2019; Lima et al., 2020). Late quartz cementation has been described as being associated with finger-like silicification bodies that migrate laterally from fault zones (Basso et al., 2023). In addition to quartz, barite, and saddle dolomite, we found a late-stage solid bitumen filling fracture porosity and vugs. Solid bitumen is commonly found in hydrothermally altered carbonates (e.g., Lima and De Ros, 2019; Lima et al., 2020; Ukar et al., 2020). Although we do not have an absolute age for the bitumen found in our samples, similar bitumen-rich fractures are commonly found in the related African Namibe Basin in Angola, where they have been dated as 86.2 ± 2.4 Ma based on the U-Pb geochronology of associated calcite cement (Rochelle-Bates et al., 2021). This age is in accordance with our description of the solid bitumen being a late phase with respect to barite, quartz, and saddle dolomite mineralization found in the fault zone. These considerations suggest that the exotic mineralogy found in fractures and fault breccias is most readily explained by the presence of widespread hydrothermal alteration directly interacting with infiltrating evaporated seawater affecting the brittle structures within carbonate mounds at the sites of wells A and B.

The Influence of Magmatism

Hydrothermal activity is compatible with what is known of the timing and pattern of magmatism in the Santos Basin. The deposition of sediments in the pre-Salt succession in the Santos Basin is intercalated with igneous rocks from several episodes of magmatism. The main magmatic activity at the South Atlantic started with an early peak at ca. 135 Ma and lasted until ca. 114 Ma in the Aptian (Szatmari and Milani, 2016; Gordon et al., 2023). Evidence suggesting contemporaneous volcanism with the Barra Velha Formation is commonly found in the pre-Salt reservoirs (e.g., Moreira et al., 2005; Thomaz Filho et al., 2008; Fornero et al., 2019; Louback et al., 2023). Fornero et al. (2019) described an interval of 400 m of volcanic rocks and basaltic subaerial flows covered by evaporites in a well in the Santos Basin. In some locations, these mafic rocks were deposited, showing pahoehoe textures (Fornero et al., 2019) typically associated with subaerial volcanic eruptions, which is evidence of the surface being actively fed by dykes or volcanoes at the time of the Barra Velha Formation deposition. Subaqueous volcanism in the Santos Basin is also evidenced by the presence of volcanic rocks rich in volcanic glass, which are formed by rapid quenching of the lava in the lake water (Zucchetti et al., 2015). The active volcanism can alter the lake water composition (e.g., Mercedes-Martín et al., 2019) and allow hot magmatic fluids to affect the host rock and deposit minerals. Our results show fluid inclusion in barite and quartz veins within the Barra Velha Formation that have coeval presence of hydrocarbons and high-salinity brines, with T_h higher than present-day temperature, which is evidence of hydrothermal origin.

The helium isotopic composition in fluid inclusions in barite and quartz is ∼2 Ra, showing a substantial input of volatiles from mantle origin. Crustal ³He/⁴He ratios are typically ∼0.01 Ra due to the predominance of radioactive elements such as uranium and thorium in the crust that decay to ⁴He, whereas mantle sources preserve a high ³He/⁴He ratio of ∼8 Ra (and even higher in plume settings), due to the presence of primordial ³He and limited radioactive decay to ⁴He (Torgersen and Jenkins, 1982). The high ³He/⁴He ratio of ∼2 Ra found in our samples is thus evidence of a direct contribution from mantle fluids into the hydrothermal system that interacted with the Barra Velha Formation, depositing the quartz and barite cements in the fracture network.

As our chemical analysis showed, besides the presence of exotic cations such as barium, we do not see evidence of a major magmatic ionic contribution, because fluid inclusion ionic composition is very close to the seawater evaporitic trend, suggesting that most of the direct magmatic input was in the form of volatiles (i.e., gases, probably with CO₂) and interacted with seawater. The ³He/⁴He ratio of our samples is lower than the expected ratio for a “pure” mantle source, which may suggest some mixing with radioactive helium by interaction with fluids from crustal sources. A similar conclusion was reached by Szatmari and Milani (2016), Lima et al. (2020), and Pestilho et al. (2022), who also interpret influence from magmatic events or direct magmatic input by mantellic sources on the diagenesis observed in the Barra Velha Formation.

The magmatic events affecting the Santos Basin during the Cretaceous and Paleogene must have had a direct influence on the depositional style and the diagenesis by input of magmatic volatiles, exotic elements and heat during deposition, and burial of the Barra Velha Formation. Magmatism in conjunction with brittle deformation, which served as pathways for fluids, probably allowed the creation of geothermal anomalies, hydrothermal vents, and lacustrine spring mounds and the input of exotic elements, including large amounts of early silica cements in the host rock. While the Aptian magmatism must have influenced the depositional system, younger magmatic events during the drift phase of the Santos Basin (e.g., Gordon et al., 2023) probably controlled hydrothermal diagenesis identified by this study, such as the 95-Ma saddle dolomite and barite mineralization.

The high amounts of CO₂ mixed with hydrocarbons in this oil field could also have been sourced by the mantle in the form of volatiles. A high CO₂ content in aqueous fluids can increase fluid acidity, which favors dissolution of the calcitic host rock. Such a mechanism could explain the common occurrence of vuggy fractures, large pores, and caves in the Barra Velha Formation. Further CO₂ input at a later stage probably mixed with the hydrocarbon charge, explaining the high CO₂ content dissolved in the reservoir oil and in the gas cap of nearby reservoirs (e.g., Gamboa et al., 2019).

Implications of High Uranium Concentrations

The uranium concentrations in chalcedony cement found in well A (up to 2 ppm) are unusual because quartz is not a uranium-bearing mineral. High uranium concentration intervals have been reported in the Barra Velha Formation, where fractures and mounded carbonates are present (Melani, 2019). A common source for high uranium peaks in gamma-ray logs can be organic matter; however, there are occurrences in the Barra Velha Formation in which thorium and potassium contents do not follow uranium increments as expected in organic matter–rich shales, meaning that the source of uranium may be something else (e.g., Melani, 2019). These unusual uranium variations within the Barra Velha Formation are not well understood, but we can hypothesize how the uranium is incorporated in chalcedony cement by at least two mechanisms.

1. The uranium was sourced by the host rock. Highly reactive dissolving fluids partially dissolved the rock that has a significant uranium content for carbonates (up to 9 ppm). Small inclusions of host rock still preserved inside the chalcedony may source the uranium measured in LA-ICP-MS (e.g., Figure 4C, HRR).

2. The uranium was sourced by hydrothermal fluids. In this case, the uranium may be in microscopic mineral inclusions that can hold uranium and are associated with the chalcedony.

Hydrothermal paragenesis with aluminum phosphate-sulfate minerals, such as svanbergite, was found as 1- to 100-μm sized inclusions in cements within the Brazilian pre-Salt carbonates (Lima et al., 2020; Strugale et al., 2024). These minerals are known to be commonly associated with uranium deposits (e.g., Gaboreau et al., 2005) and thus reinforce the hypothesis of hydrothermal uranium origin.

Conceptual Fracture Model

Here, we discuss the sequence of diagenetic events affecting the fracture network, the fracture distribution, and the mechanisms to preserve open fracture porosity.

Timeline of Diagenetic Events

Our investigation allowed us to determine the sequence of diagenetic events affecting the fracture network (Figures 14, 15). The diagenetic components within the Barra Velha Formation can be composed of several types of dolomites (microcrystalline, rhombohedral, anhedral, lamellar, saddle, blocky), calcite (cryptocrystalline, rim cement, coarse crystalline), and silica (chalcedony, microcrystalline, and macrocrystalline) (De Carvalho and Fernandes, 2021; Carramal et al., 2022; Carvalho et al., 2022; Brito et al., 2024; Gomes et al., 2025). Only some of the known diagenetic phases could be observed filling brittle structures in our samples, namely rhombohedral and saddle dolomites, chalcedony, and macrocrystalline/megaquartz. However, we were able to observe extra cement/filling phases usually not present in the host rock, namely radiaxial-fibrous and euhedral calcite cements, barite cements, and solid bitumen.

Figure 14. Chronology of diagenetic events in brittle structures. Event ages are constrained by U-Pb geochronology. We used petrography to infer relative age where geochronology was not available. Red circles: U-Pb estimated age. Black bars: U-Pb age uncertainty. Avg.Th: average homogenization temperature from fluid inclusions; Cenoman. = Cenomanian; col. = collapse; Fibr. = fibrous; Maastrich. = Maastrichtian.

Figure 15. Stages of mound development, diagenetic and hydrothermal alterations, and brittle deformation. (A) Circa 116 Ma: formation of carbonate mounds, early fractures, microcrystalline infill and dolomitization. (B) Circa 105–108 Ma: collapse brecciation cemented by radiaxial-fibrous calcite with evaporitic geochemical signature. (C) Circa 98–95 Ma: oblique faulting, dissolution, and hydrothermal cementation mostly by quartz and barite. Solid bitumen migration and calcite recrystallization are younger events. Horizontal and vertical scales of features are purposely exaggerated for clarity. Fm. = Formation.

The timeline of events (Figure 14) is constrained by U-Pb ages or by petrography where geochronological data are missing. Our event chart considers the uncertainties of the U-Pb geochronology method by the width of the bar in the chart. Although the sequence observed here is well constrained locally, it may vary in other areas. Because a substantial part of the diagenesis here is linked to hydrothermal alteration, it can be susceptible to changes in the underlying rocks and variation in magmatism occurrence.

The overall sequence of structural diagenesis affecting the Barra Velha Formation in the studied area is the following.

1. Host rock composed mostly of shrubstones and spherulitestones was deposited at least ca. 116–113 Ma within mounded carbonates rooted by faults. Fractures were formed very early, and dolomitization affected the calcite that infiltrated inside the fractures. Faults acted since the beginning, evidenced by cataclastic textures within small displacement faults.

2. Early brecciation and hydrothermal vents were active at least ca. 108 Ma at a maximum burial depth of ∼400 to 600 m. Large cavities in host rock collapsed. Radiaxial-fibrous calcite rims formed around collapse breccia clasts. Infiltration of microcrystalline material followed the brecciation. These collapsed cavities were probably formed by overpressurized and corrosive fluids, although meteoric dissolution is also possible. Fluids with evaporitic signature and supersaturated in calcite precipitated radiaxial-fibrous calcite rims. Evaporitic lake waters and seawater incursions infiltrated downward into the mounds through fractures. Wide veins formed with fluid escape structures.

3. Dissolution of host rock took place, probably aided by mantle-derived volatiles, including He and CO₂, creating vuggy pores and caves around faults and within the fracture network. Early vuggy pores were covered by euhedral calcite at ca. 98 Ma.

4. Oblique-normal faults and associated fault breccia were mineralized at least 95 Ma. Ascending hydrothermal fluids mineralized the fault zone, mostly with saddle dolomite.

5. With continuing dissolution, fractures were enlarged and formed a network of vuggy fractures. Large cavities formed quartz or barite geodes when mineralized. Chalcedony, quartz, and barite-filling fractures were deposited by hydrothermal fluids that interacted with basement, magmatic sources, and mixture with previously infiltrated seawater.

6. Solid bitumen filled open pores still connected to the overall fault and fracture network, representing the last phase of filling.

Preservation of Open Fractures

Fracture porosity is mostly seen preserved in fractures mineralized with quartz or barite. These fractures typically have irregular pitted fracture walls, suggesting that the fluids passing through caused dissolution of the calcitic host rock (Figures 3; 9C, G). The fluids that caused cementation in fractures are likely of hydrothermal origin, as indicated by elevated T_h values of fluid inclusions hosted in quartz and barite. The latter could be sourced from fluids that originated from outside of the Barra Velha Formation. Thus, fractures formed (either during regional burial or associated with faults) and were differentially widened by corrosive fluids, but they subsequently were partly filled with hydrothermal minerals. Preservation of porosity depends on how wide the fractures are during dissolution and on the extent of later mineral infill.

The correlation of fault zone proximity and secondary porosity preservation has been identified in some pre-Salt areas. There is evidence of the importance of fault damage zones creating fracture porosity that may be further increased by dissolution, causing the formation of vuggy fractures (e.g., Figure 3B, D) and caves (De Jesus et al., 2016; Baqués et al., 2020; Fernández-Ibáñez et al., 2022a). Wennberg et al. (2021) described intervals of damage zones next to faults with high average fracture intensity of 14 fractures per meter based on image logs. These regions can have high porosity (>20%) and high permeability (>1 d) and are thought to be among the causes of excess permeability identified by well tests (e.g., Fernández-Ibáñez et al., 2022b). However, fractures with regular walls are usually pervasively cemented, most commonly with quartz (Figure 10B, QV). This suggests the importance of faults creating secondary porosity in the reservoir, and in areas where widespread dissolution occurred, porosity remained partially preserved in some proportion.

A curious feature commonly observed in vugs and fractures mineralized with quartz and barite is size-dependent mineralization. When fractures can be seen connected with vugs forming a network of fractures, narrow width fractures are pervasively cemented, but vuggy fractures or large cavities are still preserved, usually partially filled by euhedral quartz or barite in the form of a geode (e.g., Figure 7E).

A possible mechanism that can explain this preferential preservation of vuggy fracture porosity relative to quartz is the tendency for quartz to seal narrow fractures rapidly (Laubach, 2003; Lander and Laubach, 2015). This process has been proposed to explain porous, vuggy fault cores in sandstone (Laubach et al., 2014). However, where fluid transport governs quartz accumulation, wide conductive fractures may preferentially fill with quartz (Williams et al., 2015; Williams and Fagereng, 2022).

During the process of cementation, fractures and vugs were linked with one another and in contact with the same cementing fluid. However, as cementation took place, smaller parts of the network were closed first, with the crystal growth leaving only the larger pores preserved with partial fill. Notably large geodes (1–2 cm) with pristine quartz and barite crystals inside could only be preserved if these pores were isolated from the rest of the network because no other cement phase covered these euhedral crystals after they formed (Figure 16). Although geodes may have been linked to fractures and high-permeability pathways, the size-dependent fill that mainly closes small width fractures tends to isolate geode cavities. Once geodes are isolated from the rest of the fracture network, their contribution to permeability is likely zero, although their storage potential is mostly preserved. Later oil migration may have helped in the preservation of pristine crystals within geodes because the oil would prevent the deposition of minerals from aqueous solutions.

Figure 16. Mechanism to form and preserve mineralized vuggy fractures and vuggy pores. (A) Deformed host rock with opening-mode fractures showing straight walls. (B) Vuggy fracture enlarged by dissolving fluids rich in silica and mantle volatiles (CO₂ included) that promoted host rock dissolution. (C) Quartz covers vugs and fracture walls; narrow fractures are filled first, and large fractures are still open, leaving fluid pathways to Ba-rich fluids. (D) Barite covers the geode and vuggy fracture; remaining porosity is only preserved in large cavities forming geodes and the large vuggy fractures coated by euhedral cements, whereas narrow fractures are pervasively cemented, preventing new incoming fluid flow. Vuggy pores that became isolated from the pore network during quartz cementation do not show barite cementation.

Based on these observations and inferences, we interpret that most of the preserved secondary porosity in fractures must have been interconnected with vuggy pores and was created by dissolving fluids sourced by the underlying faults. These fluids used the established damage zone around faults to flow through and dissolve fractures, creating in some parts vugs or even caves (e.g., De Jesus et al., 2016). When cementation took place, small fracture widths and pores filled first and clogged pathways to large cavities, creating pristine geodes and trapped porosity. Where large cavities are still connected, pathways are likely large enough to resist cementation (∼1 cm or more).

CONCLUSIONS

In the Barra Velha Formation, our study of cores from two wells constrains the Aptian depositional age of the formation and documents the deformation of host rock by several phases of brecciation, faulting, and fracturing, which still preserve porosity.

Using U-Pb dating, we show that the Barra Velha Formation is at least approximately 116 m.y. old and that recrystallization affected some of the host rock components, yielding younger recrystallization ages (Albian and Maastrichtian) in some parts.

A shallow (400–600 m depth or less) collapse brecciation event affected the Barra Velha Formation at ca. 108 Ma. Isotopic geochemistry shows that the composition of radiaxial-fibrous calcite rims cementing breccias is evaporitic, suggesting that they were cemented by fluids with composition close to the evaporitic lake waters.

We provide the first description of wide veins mineralized with calcite and quartz and bearing crack-seal texture, internal brecciation, and fluid escape structures, which are indicative of hydrothermal vents or hot springs. Spring mounds or pinnacles observed in seismic and dendritic calcite growing in vuggy pores are additional evidence of vent-fed springs affecting depositional system and diagenesis.

Hydrothermal mineralization, including barite, saddle dolomite, quartz-filled breccias, veins, and vugs, are evidence of uprising hydrothermal fluids, rich in mantle volatiles, fed by the faults that interacted with infiltrated seawater and possibly basement. Fault mineralization occurred ca. 95 Ma, with saddle dolomite associated with fault breccias.

We describe a timeline of diagenetic events affecting the fracture network that is anchored by U-Pb dates. The fracture network experienced several episodes of cementation, probably linked to fluids ascending along a fault zone. Open porosity in fractures is preserved where neighboring narrow pathways to vuggy pores are clogged by cement or where dissolution was intense enough to create vuggy pores >1 cm or caverns that were not pervasively filled by barite or quartz cement. Solid bitumen is observed filling remaining open vuggy pores and fractures.

APPENDIX

Figure 17. Tera-Wasserburg plots of the features dated with U-Pb. (A) Dolomite (substitution). (B) Spherulite 1 rim (host rock). (C) Shrub (host rock). (D) Spherulite 2 center (host rock). (E) Spherulite 2 rim (host rock). (F) Radiaxial-fibrous calcite rim (collapse breccia). (G) Radiaxial-fibrous calcite rim (collapse breccia). (H) Infill (collapse breccia). (I) Radiaxial-fibrous calcite rim (collapse breccia). (J) Altered host rock. (K) Euhedral calcite. (L) Altered host rock. (M) Saddle dolomite (fault breccia). (N) Shrub (recrystallized host rock). MSWD = mean squared weighted deviation.
