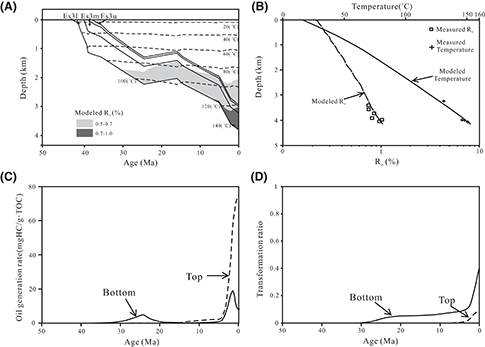

Figure 11. Basin modeling results of the well Y172 in the Bonan oil field. (A) Burial history modeling. (B) Depth profiles of correlation between modeled and measured data (temperature and reflectance). (C) Evolution of oil-generation rate of source rocks in the lower interval of the third interval of the Paleogene Shahejie (Es3l). (D) Transformation ratio evolution of source rocks in the Es3l. Es3m = middle part of Es3; Es3u = upper part of Es3; Ro = vitrinite reflectance; TOC = total organic carbon content.
