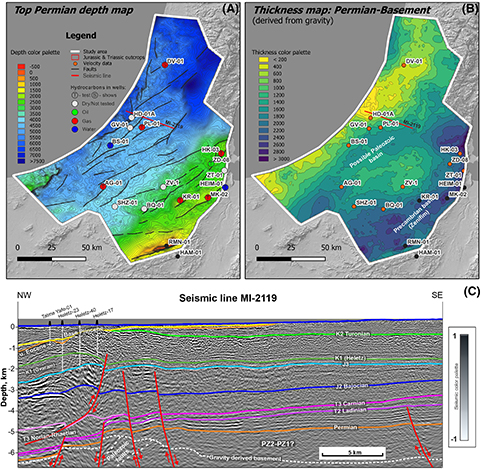

Figure 10. (A) Top Permian (Arqov Formation) structural map. (B) Isopach map of the sequence between the Permian and basement. (C) Seismic section showing the thickness change of the Triassic–Permian sequence. J = Jurassic; K = Cretaceous; PZ = Paleozoic; T = Triassic; u. Eocene = upper Eocene.
