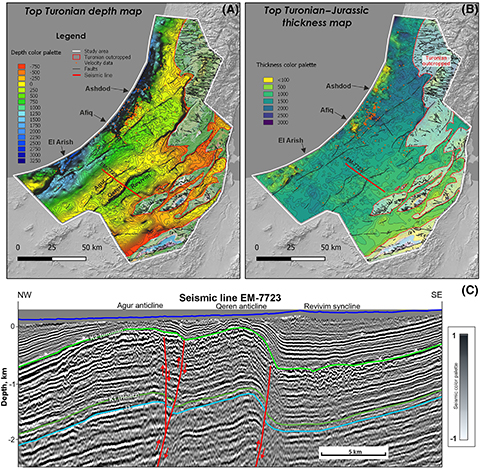

Figure 13. (A) Top Turonian structural map. (B) Isopach map of Turonian–Jurassic sequence. (C) Seismic section showing the reverse faults under the northern Negev structures. Note the onlaps in the adjacent synclines that indicate the structural activity during deposition (Senonian age). J = Jurassic; K = Cretaceous.
