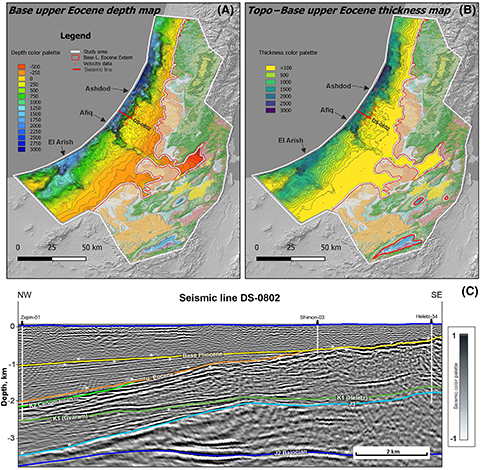

Figure 14. (A) Upper Eocene unconformity structural map. (B) Isopach map between topography and base upper Eocene unconformity. (C) Seismic section showing the erosive relations between the sequences along the shelf edge. J = Jurassic; K = Cretaceous; L. Eocene = lower Eocene; u. Eocene = upper Eocene.
Figure 14. (A) Upper Eocene unconformity structural map. (B) Isopach map between topography and base upper Eocene unconformity. (C) Seismic section showing the erosive relations between the sequences along the shelf edge. J = Jurassic; K = Cretaceous; L. Eocene = lower Eocene; u. Eocene = upper Eocene.
